Hart PB 1g 13A Unswt Skt WH

Hart PB 1g 13A Unswt Skt WH
Hart PB 1g 13A Unswt Skt WH - Image 2
Hart PB 1g 13A Unswt Skt WH - Image 3
Hart PB 1g 13A Unswt Skt WH - Image 4

Type

1 gang 13A Unswitched Socket

Plate Finish

Polished Brass

Insert Finish

White

Description

Hartland Polished Brass 1 gang 13A Unswitched Socket White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-021-007
Insert-Type

1 gang 13A Unswitched Socket
Insert-Colour

White
Uf-ItmLabelTechInsert

US13
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Polished Brass 1 gang 13A Unswitched Socket White
PlateFinish

Hartland Box Polished Brass
EAN13-Barcode

5017503210077

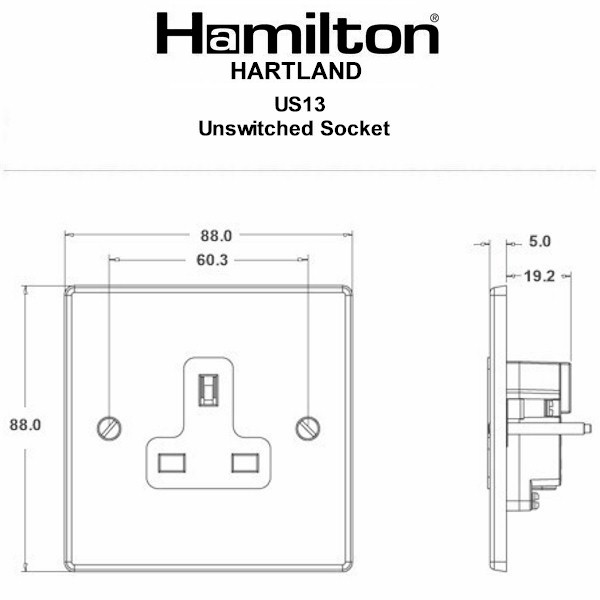

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Switched-Poles

None
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3 x 4mm2
Earth-Terminal-Capacity-3

2 x 6mm2 Multi-strand
Earth-Terminal-Capacity-4

1 x 10mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Additional-Notes

Shuttered: Yes
Commodity-Code

85366990

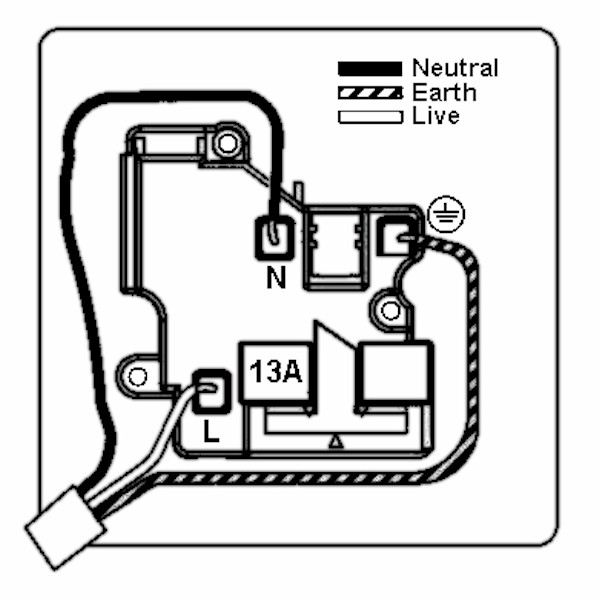

Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391559260
Tech-Sheet-Page-Footer

71US13W – Hartland Polished Brass 1 gang 13A Unswitched Socket White
product-code

S HART PB
family-code

S HARTLAND
last-inv

23/09/2025
unit-weight

107.00000
weight-units

GR
Uf-LuckinsEDP

4533189973
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

21
InsertSortOrder

007
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

15/01/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Polished Brass
Subheader2

Hartland Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/nrql/#p=1
Weight

107 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart PB 1g 13A Unswt Skt WH
Height

88.0mm
Width

88.0mm
Depth

5.0mm
