Hart MW 1g 13A Unswt Skt WH

Hart MW 1g 13A Unswt Skt WH
Hart MW 1g 13A Unswt Skt WH - Image 2
Hart MW 1g 13A Unswt Skt WH - Image 3

Type

1 gang 13A Unswitched Socket

Plate Finish

Matt White

Insert Finish

White

Description

Hartland Matt White 1 gang 13A Unswitched Socket White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-021-007
Subheader2

Hartland Range
Insert-Type

1 gang 13A Unswitched Socket
Plate-Finish

Matt White
Insert-Colour

White
QR-Instruction

https://online.fliphtml5.com/Hamilton/nrql/#p=1
Uf-ItmLabelTechInsert

US13
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Matt White 1 gang 13A Unswitched Socket White
PlateFinish

Hartland Box Matt White
EAN13-Barcode

5017504108816
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Switched-Poles

None
Current-Rating

13 Amp
Voltage

220/250V AC
Maximum-Load

13 Amp
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

None
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3 x 4mm2
Earth-Terminal-Capacity-3

2 x 6mm2 Multi-strand
Earth-Terminal-Capacity-4

1 x 10mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Additional-Notes

Shuttered: Yes
Commodity-Code

85366990

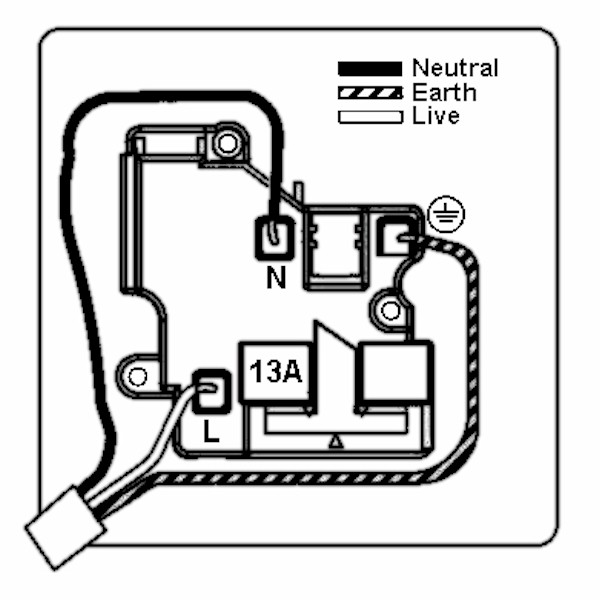

Wiring-Image

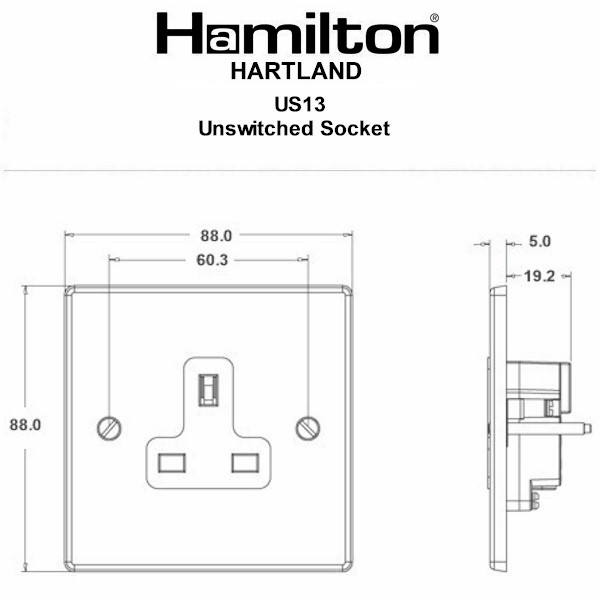

Dimension-Image

Luckins-TSI

436616741
Tech-Sheet-Page-Footer

7MWUS13W – Hartland Matt White 1 gang 13A Unswitched Socket White
description

Hart MW 1g 13A Unswt Skt WH
product-code

S HART MW
family-code

S HARTLAND
last-inv

21/08/25
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533442953
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

010
HAM-SortOrder

021
InsertSortOrder

007
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Matt White
Uf-HAMFrameFinish

n/a
WEB-InsertType

Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

08/01/26
