Hart EB 1g 5A Unswt Skt BL

Hart EB 1g 5A Unswt Skt BL
Hart EB 1g 5A Unswt Skt BL - Image 2
Hart EB 1g 5A Unswt Skt BL - Image 3
Hart EB 1g 5A Unswt Skt BL - Image 4

Type

1 gang 5A Unswitched Socket

Plate Finish

Etrium Bronze

Insert Finish

Black

Description

Hartland Etrium Bronze 1 gang 5A Unswitched Socket Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-021-006
Subheader2

Hartland Power Sockets
Insert-Type

1 gang 5A Unswitched Socket
Plate-Finish

Etrium Bronze
Insert-Colour

Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/nrql/#p=1
Uf-ItmLabelTechInsert

US5
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Etrium Bronze 1 gang 5A Unswitched Socket Black
PlateFinish

Hartland Box Etrium Bronze
EAN13-Barcode

5017503004331

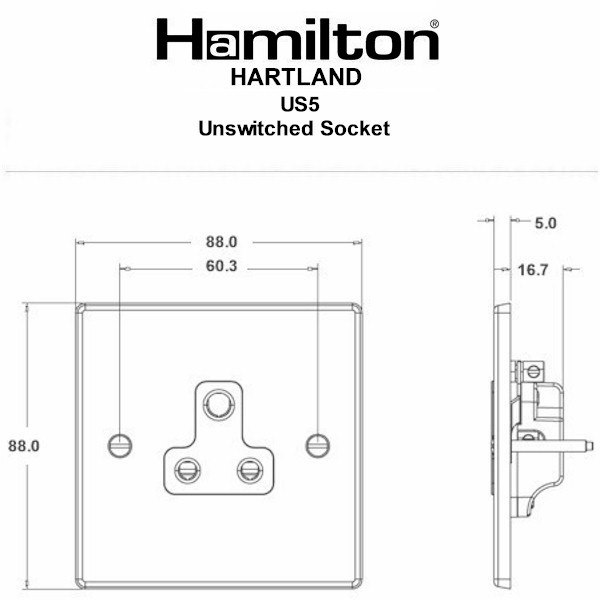

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Weight

95 GR
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Switched-Poles

None
Current-Rating

5 Amp
Voltage

220/250V AC
Maximum-Load

5 Amp
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

None
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

2×2.5mm²
Terminal-Capacity-4

1x4mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

2 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 546
Additional-Notes

Shuttered: Yes
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

438403350
Tech-Sheet-Page-Footer

7EBUS5B – Hartland Etrium Bronze 1 gang 5A Unswitched Socket Black
description

Hart EB 1g 5A Unswt Skt BL
product-code

S HART EB
family-code

S HARTLAND
last-inv

02/02/2026
unit-weight

95.30000
weight-units

GR
Uf-LuckinsEDP

4533461620
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

21
InsertSortOrder

006
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

02/02/2026
