Hart BC 1g 13A DP Swt Skt BC/WH

SKU: 77SS1BCW Category:
Hart BC 1g 13A DP Swt Skt BC/WH
Hart BC 1g 13A DP Swt Skt BC/WH - Image 2
Hart BC 1g 13A DP Swt Skt BC/WH - Image 3
Hart BC 1g 13A DP Swt Skt BC/WH - Image 4
SKU: 77SS1BCW Category:

Type

1 gang 13A Double Pole Switched Socket

Plate Finish

Bright Chrome

Insert Finish

Bright Chrome/White

Description

Hartland Bright Chrome 1 gang 13A Double Pole Switched Socket Bright Chrome/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-021-001
Insert-Type

1 gang 13A Double Pole Switched Socket
Insert-Colour

Bright Chrome/White
Uf-ItmLabelTechInsert

SS1
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Bright Chrome 1 gang 13A Double Pole Switched Socket Bright Chrome/White
PlateFinish

Hartland Box Bright Chrome
EAN13-Barcode

5017503277018

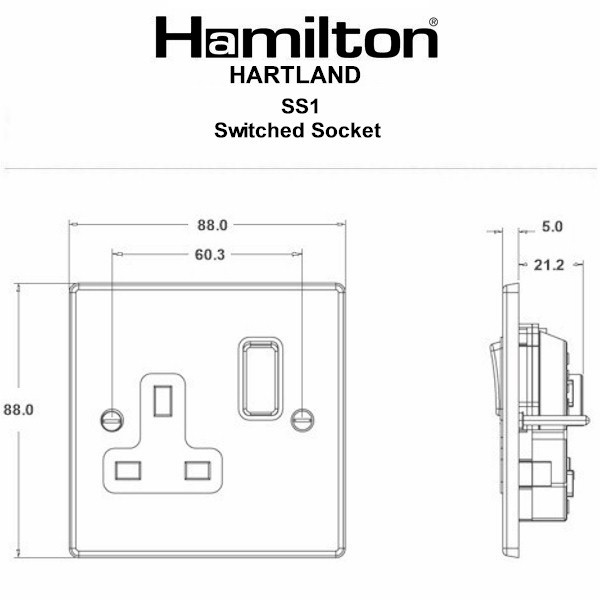

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

385556525
Tech-Sheet-Page-Footer

77SS1BC-W – Hartland Bright Chrome 1 gang 13A Double Pole Switched Socket Bright Chrome/White
product-code

S HART BC
family-code

S HARTLAND
last-inv

03/02/2026
unit-weight

120.90000
weight-units

GR
Uf-LuckinsEDP

4533116140
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

21
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Switched Socket
WEB-NumberofGangs

1
MainInsertColour

Bright Chrome
TrimColour

White
Last-Updated-At-Hamilton

03/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Bright Chrome
Subheader2

Hartland Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Weight

121 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart BC 1g 13A DP Swt Skt BC/WH
Height

88.0mm
Width

88.0mm
Depth

5.0mm
