Description
Hartland Anthra Gray Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Quartz Grey
Hart GA Shaver Dual Volt Socket QG
Type
Shaver Dual Voltage Unswitched Socket (Vertically Mounted)Plate Finish
Anthra GrayInsert Finish
Quartz GreyAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland |
| Page-Sort-Order | 010-021-011 |
| Subheader2 | Hartland Power Sockets |
| Insert-Type | Shaver Dual Voltage Unswitched Socket (Vertically Mounted) |
| Plate-Finish | Anthra Gray |
| Insert-Colour | Quartz Grey |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bzky/#p=1 |
| Uf-ItmLabelTechInsert | SHS |
| Uf-HAM-Plate-Range | Hartland Box Vertical |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Hartland |
| Patents-And-Trade-Marks | Hartland is a Registered Trade Mark No. 2344778 |
| Item-Long-Description | Hartland Anthra Gray Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Quartz Grey |
| PlateFinish | Hartland Box Vertical Anthra Gray |
| EAN13-Barcode | 5017504108076 |
| Dimensions(Nominal) | Double: Height = 144.5mm Width = 88.0mm Depth = 5.0mm |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 47mm |
| Switched-Poles | None |
| Current-Rating | 20VA |
| Voltage | 220/250V AC |
| Maximum-Load | 200/250V input; 115/230V 20VA output |
| Mains-Frequency | 50Hz |
| IP-Rating | IP2XD |
| Contact-Gap-Minimum | None |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 9x1mm² |
| Earth-Terminal-Capacity-2 | 6×1.5mm² |
| Earth-Terminal-Capacity-3 | 4×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 61558-2-5 + BS 4573 |
| Additional-Notes | Must be mounted vertically. Shuttered :Yes. Box Depth 47mm |
| Commodity-Code | 85366990 |

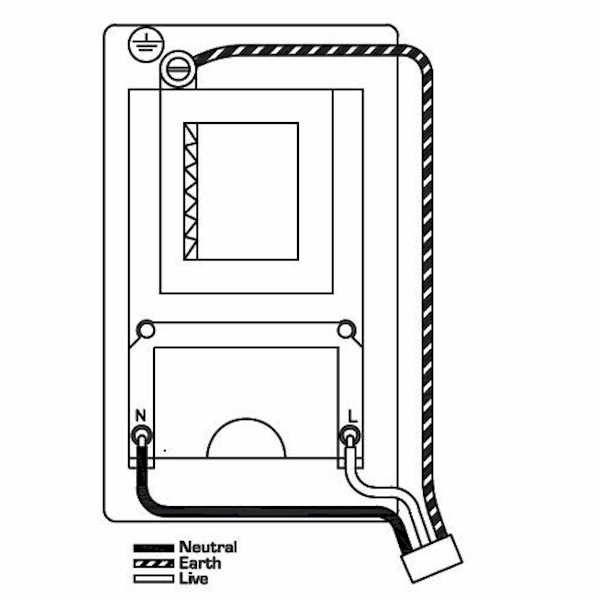

| Wiring-Image | WDSHS.jpg |
| Item-Image | 7ASHSQG.jpg |

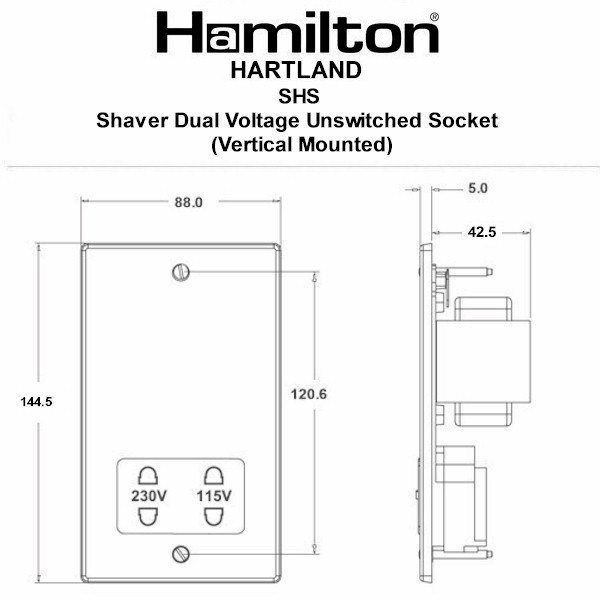

| Dimension-Image | TD-7SHS.jpg |
| Luckins-TSI | 436618147 |
| Tech-Sheet-Page-Footer | 7ASHSQG – Hartland Anthra Gray Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Quartz Grey |
| description | Hart Anthra Shaver Dual Volt Socket QG |
| product-code | S HART GA |
| family-code | S HARTLAND |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533444359 |
| Uf-HAMInnerBoxQty | 2 |
| Uf-OuterBoxQty | 20 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 10 |
| HAM-SortOrder | 21 |
| InsertSortOrder | 011 |
| Generic-Size | Double |
| Height | 144.5mm |
| Width | 88.0mm |
| Depth | 5.0mm |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Anthra Gray |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Shaver Socket |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Quartz Grey |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 03/02/2026 |
Download datasheet
