Hart MB 1 Euro Apert 25×50+Grid

SKU: 7MBEURO1 Category:
Hart MB 1 Euro Apert 25x50+Grid
Hart MB 1 Euro Apert 25x50+Grid - Image 2
SKU: 7MBEURO1 Category:

Type

1 gang EuroFix 25x50mm Apertured Plate with Grid

Plate Finish

Matt Black

Insert Finish

N/A

Description

Hartland EuroFix Matt Black Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid – NOT Suitable for Over Painting

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-132-001
Insert-Type

1 gang EuroFix 25x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO1
Uf-HAM-Plate-Range

Hartland EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland EuroFix Matt Black Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid – NOT Suitable for Over Painting
PlateFinish

Hartland EuroFix Matt Black
EAN13-Barcode

5017504093785
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Weight

62 GR
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

As Per Insert
Switched-Poles

N/A
Current-Rating

Insert Specific
Voltage

Insert Specific
Maximum-Load

Insert Specific
IP-Rating

IPXXB
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

73269098
Wiring-Image

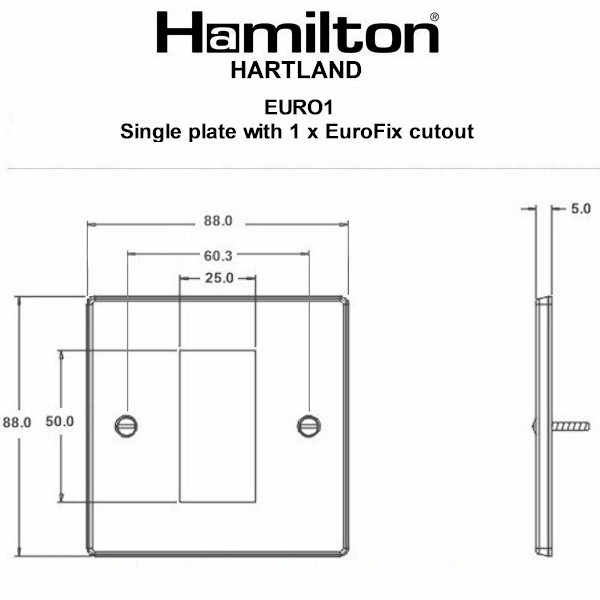

Dimension-Image

Luckins-TSI

433715137
Tech-Sheet-Page-Footer

7MBEURO1 – Hartland EuroFix Matt Black Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid – NOT Suitable for Over Painting
product-code

S EFix 7MB
family-code

S HARTLAND
last-inv

25/02/2026
unit-weight

62.00000
weight-units

GR
Uf-LuckinsEDP

4533419999
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

132
InsertSortOrder

001
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Matt Black
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

1
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

04/03/2026
Plate-Finish

Matt Black
Subheader2

Hartland Plates
