Hart BK 4 Euro Apert 100X50+Grid

SKU: 78EURO4 Category:
Hart BK 4 Euro Apert 100X50+Grid
Hart BK 4 Euro Apert 100X50+Grid - Image 2
Hart BK 4 Euro Apert 100X50+Grid - Image 3
SKU: 78EURO4 Category:

Type

4 gang EuroFix 100x50mm Apertured Plate with Grid

Plate Finish

Black Nickel

Insert Finish

N/A

Description

Hartland EuroFix Black Nickel Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-132-004
Insert-Type

4 gang EuroFix 100x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO4
Uf-HAM-Plate-Range

Hartland EuroFix
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland EuroFix Black Nickel Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
PlateFinish

Hartland EuroFix Black Nickel
EAN13-Barcode

5028690289197

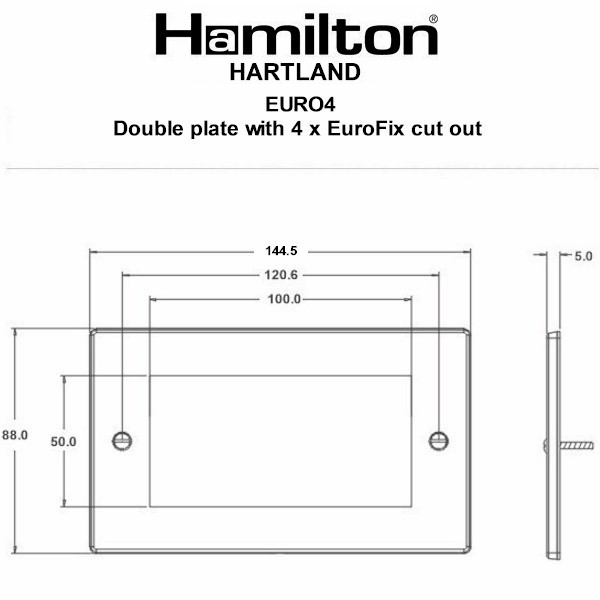

Dimensions(Nominal)

Double: Height = 88.0mm Width = 144.5mm Depth = 5.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

73269098
Item-Image

Dimension-Image

Luckins-TSI

387359335
Tech-Sheet-Page-Footer

78EURO4 – Hartland EuroFix Black Nickel Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
product-code

S EFix 78
family-code

S HARTLAND
last-inv

26/09/2025
unit-weight

127.00000
weight-units

GR
Uf-LuckinsEDP

4533135008
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

132
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

4
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

04/03/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

As Per Inserts
Weight

127 GR
Voltage

Insert Specific
IP-Rating

IPXXB
Height

88.0mm
Width

144.5mm
Depth

5.0mm
Plate-Finish

Black Nickel
Subheader2
