Description
Hartland Antique Brass 1 gang 20AX 2 Way FL DLY Antique Brass
SKU: 79T21
Category: Hartland Toggles
Type
20AX 2 Way Dolly Module + Ring NutPlate Finish
Antique BrassInsert Finish
Antique BrassAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland |
| Page-Sort-Order | 010-063-002 |
| Insert-Type | 20AX 2 Way Dolly Module + Ring Nut |
| Insert-Colour | Antique Brass |
| Uf-ItmLabelTechInsert | FLDLY212 |
| Uf-HAM-Plate-Range | Hartland Box |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland |
| Patents-And-Trade-Marks | Hartland is a Registered Trade Mark No. 2344778 |
| Item-Long-Description | Hartland Antique Brass 1 gang 20AX 2 Way FL DLY Antique Brass |
| PlateFinish | Hartland Box Antique Brass |
| EAN13-Barcode | 5028690292852 |

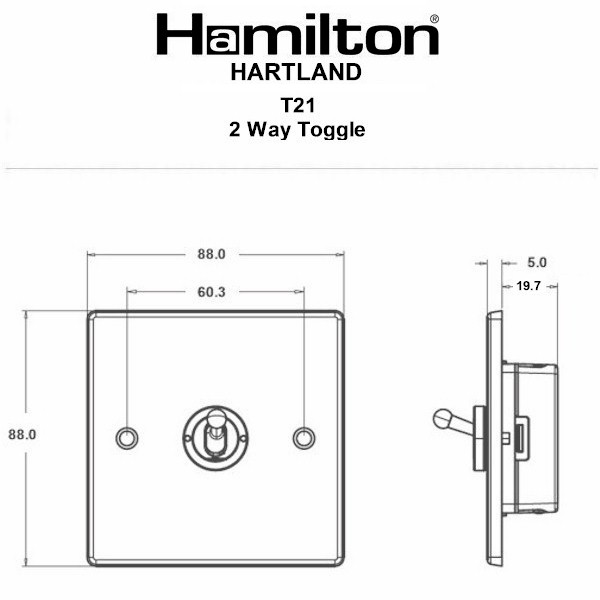

| Dimensions(Nominal) | Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm |
| Switched-Poles | Single |
| Current-Rating | 20AX |
| Maximum-Load | 20 Amp inductive |
| Mains-Frequency | 50/60Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 6x1mm² |
| Terminal-Capacity-2 | 5×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Terminal-Capacity-4 | 2x4mm² |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 6x1mm² |
| Earth-Terminal-Capacity-2 | 5×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-1 |
| Commodity-Code | 85365080 |
| Wiring-Image | WD2Wv2.jpg |
| Item-Image | 79T21.jpg |
| Dimension-Image | TD-7T21.jpg |
| Luckins-TSI | 386903821 |
| Tech-Sheet-Page-Footer | 79T21 – Hartland Antique Brass 1 gang 20AX 2 Way FL DLY Antique Brass |
| product-code | S HART AB |
| family-code | S HARTLAND |
| last-inv | 02/03/2026 |
| unit-weight | 108.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533128154 |
| Uf-HAMInnerBoxQty | 5 |
| Uf-OuterBoxQty | 50 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 10 |
| HAM-SortOrder | 63 |
| InsertSortOrder | 002 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Antique Brass |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | 2 Way |
| WEB-NumberofGangs | 1 Module GRID-IT FL Insert |
| MainInsertColour | Antique Brass |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 02/03/2026 |
| Module-Size | Height = 53mm Width = 25mm Depth = 23mm |
| Module-Size-Height | 53mm |
| Module-Size-Width | 25mm |
| Module-Size-Depth | 23mm |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Antique Brass |
| Subheader2 | Hartland Front Loading Modules |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/uzsv/#p=1 |
| Weight | 108 GR |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| Height | 88.0mm |
| Width | 88.0mm |
| Depth | 5.0mm |
