Hart MW 1g 20AX DP Rkr + Neon WH/WH

Hart MW 1g 20AX DP Rkr + Neon WH/WH
Hart MW 1g 20AX DP Rkr + Neon WH/WH - Image 2
Hart MW 1g 20AX DP Rkr + Neon WH/WH - Image 3

Type

1 gang 20AX Double Pole Rocker + Neon

Plate Finish

Matt White

Insert Finish

White/White

Description

Hartland Matt White 1 gang 20AX Double Pole Rocker and Neon White/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-027-002
Subheader2

Hartland Range
Insert-Type

1 gang 20AX Double Pole Rocker + Neon
Plate-Finish

Matt White
Insert-Colour

White/White
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Uf-ItmLabelTechInsert

DPN
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Matt White 1 gang 20AX Double Pole Rocker and Neon White/White
PlateFinish

Hartland Box Matt White
EAN13-Barcode

5017504108656
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Weight

107 GR
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

20AX
Voltage

220/250V AC
Maximum-Load

20 Amp inductive
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080

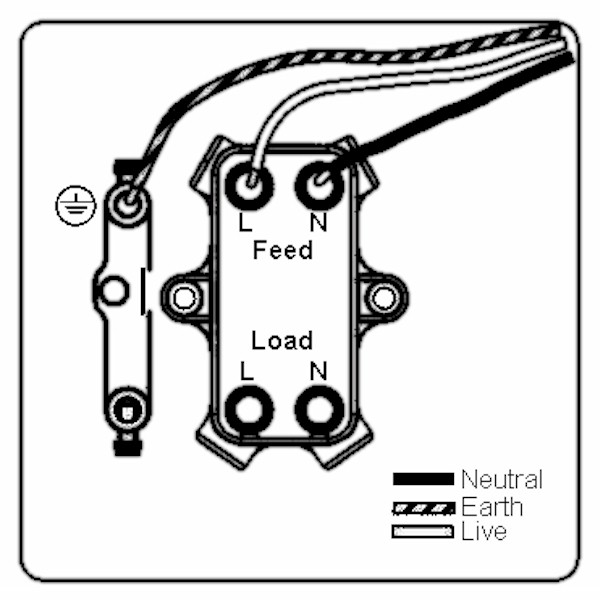

Wiring-Image

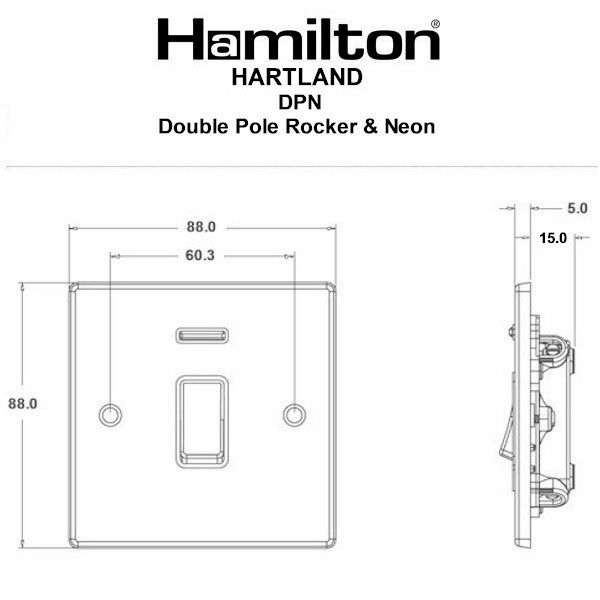

Dimension-Image

Luckins-TSI

436616602
Tech-Sheet-Page-Footer

7MWDPNWH-W – Hartland Matt White 1 gang 20AX Double Pole Rocker and Neon White/White
description

Hart MW 1g 20AX DP Rkr + Neon WH/WH
product-code

S HART MW
family-code

S HARTLAND
last-inv

01/12/25
unit-weight

107.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533442814
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

010
HAM-SortOrder

027
InsertSortOrder

002
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Matt White
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

White
Last-Updated-At-Hamilton

19/02/26

Download datasheet
