Hart MB 1g 45A Double Pole+N Red Rkr/BL

Hart MB 1g 45A Double Pole+N Red Rkr/BL
Hart MB 1g 45A Double Pole+N Red Rkr/BL - Image 2
Hart MB 1g 45A Double Pole+N Red Rkr/BL - Image 3

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Matt Black

Insert Finish

Red/Black

Description

Hartland Matt Black 1 gang 45A Double Pole Rocker and Neon Red/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-027-012
Subheader2

Hartland Range
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Plate-Finish

Matt Black
Insert-Colour

Red/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Matt Black 1 gang 45A Double Pole Rocker and Neon Red/Black
PlateFinish

Hartland Box Matt Black
EAN13-Barcode

5017504108342
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Weight

120 GR
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

45 Amp
Voltage

220/250V AC
Maximum-Load

45 Amp
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080

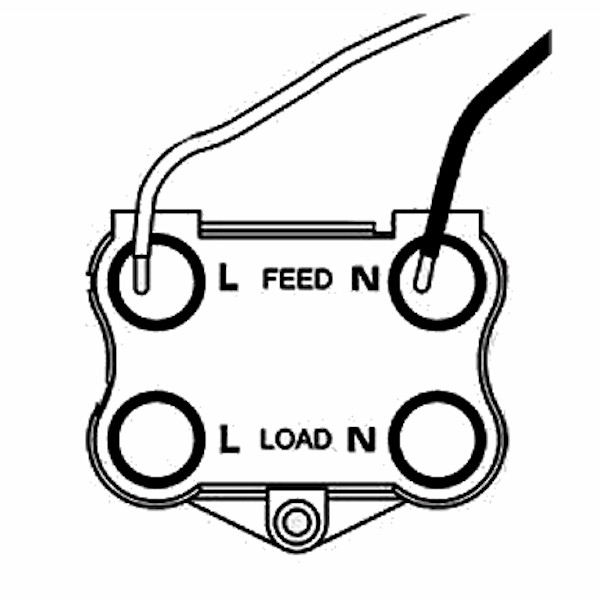

Wiring-Image

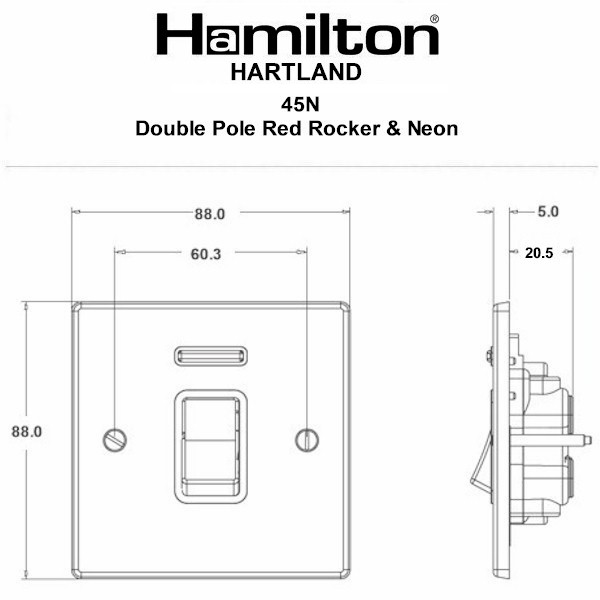

Dimension-Image

Luckins-TSI

436616288
Tech-Sheet-Page-Footer

7MB45NB – Hartland Matt Black 1 gang 45A Double Pole Rocker and Neon Red/Black
description

Hart MB 1g 45A Double Pole+N Red Rkr/BL
product-code

S HART MB
family-code

S HARTLAND
last-inv

25/02/26
unit-weight

120.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533442490
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

010
HAM-SortOrder

027
InsertSortOrder

012
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Matt Black
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

Black
Last-Updated-At-Hamilton

25/02/26
