Hart Ant 1g 45A Double Pole+N Red Rkr/QG

SKU: 7A45NQG Category:
Hart Ant 1g 45A Double Pole+N Red Rkr/QG
Hart Ant 1g 45A Double Pole+N Red Rkr/QG - Image 2
Hart Ant 1g 45A Double Pole+N Red Rkr/QG - Image 3
Hart Ant 1g 45A Double Pole+N Red Rkr/QG - Image 4
SKU: 7A45NQG Category:

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Anthra Gray

Insert Finish

Red/Quartz Grey

Description

Hartland Anthra Gray 1 gang 45A Double Pole Rocker and Neon Red/Quartz Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-027-012
Subheader2

Hartland Double Pole Switches
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Plate-Finish

Anthra Gray
Insert-Colour

Red/Quartz Grey
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Anthra Gray 1 gang 45A Double Pole Rocker and Neon Red/Quartz Grey
PlateFinish

Hartland Box Anthra Gray
EAN13-Barcode

5017504107826
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

45 Amp
Voltage

220/250V AC
Maximum-Load

45 Amp
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080

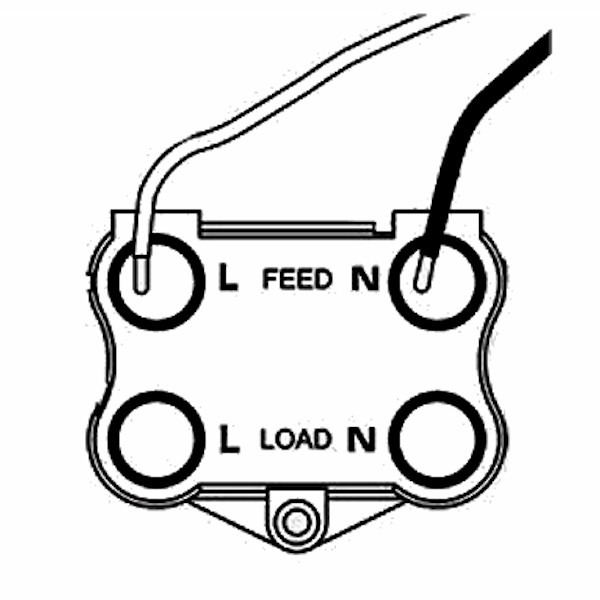

Wiring-Image

Item-Image

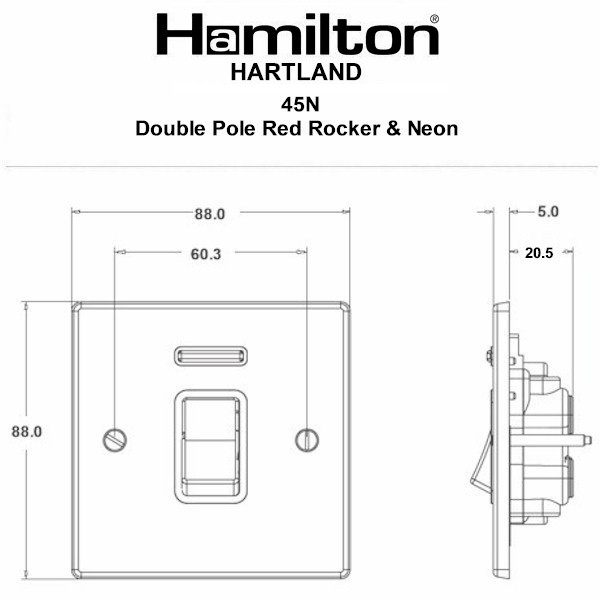

Dimension-Image

Luckins-TSI

436616259
Tech-Sheet-Page-Footer

7A45NQG – Hartland Anthra Gray 1 gang 45A Double Pole Rocker and Neon Red/Quartz Grey
description

Hart Ant 1g 45A Double Pole+N Red Rkr/QG
product-code

S HART GA
family-code

S HARTLAND
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533442461
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

27
InsertSortOrder

012
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Anthra Gray
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

Quartz Grey
Last-Updated-At-Hamilton

24/01/2026

Download datasheet
