Hartland PB 2g WIFI SD250MW Dimmer PB

SKU: 712XLSD250MW Category:
Hartland PB 2g WIFI SD250MW Dimmer PB
Hartland PB 2g WIFI SD250MW Dimmer PB - Image 2
Hartland PB 2g WIFI SD250MW Dimmer PB - Image 3
SKU: 712XLSD250MW Category:

Type

1 gang 250W/VA Wi-Fi Rotary Master LED Trailing Edge Dimmer

Plate Finish

Polished Brass

Insert Finish

Polished Brass

Description

Hartland Polished Brass 2g Wi-Fi Rotary Master LED Dimmer Polished Brass – Rated at 250W/VA in Trailing Edge (100W/VA Leading Edge)

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-006-002
Insert-Type

1 gang 250W/VA Wi-Fi Rotary Master LED Trailing Edge Dimmer
Insert-Colour

Polished Brass
Uf-ItmLabelTechInsert

2XL-SD250MW
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Polished Brass 2g Wi-Fi Rotary Master LED Dimmer Polished Brass – Rated at 250W/VA in Trailing Edge (100W/VA Leading Edge)
PlateFinish

Hartland Box Polished Brass
EAN13-Barcode

5052750025135

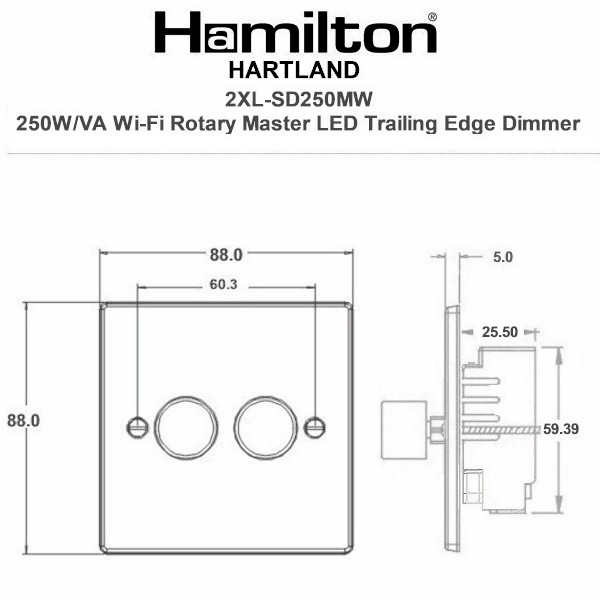

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Wattage

5-250W/VA
Switched-Poles

Single
Current-Rating

1.1 Amp
Voltage

230V AC
Maximum-Load

250W/VA Trailing 100W/VA Leading
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Frequencies-1

Wi-Fi 2.4GHz
Commodity-Code

85365005

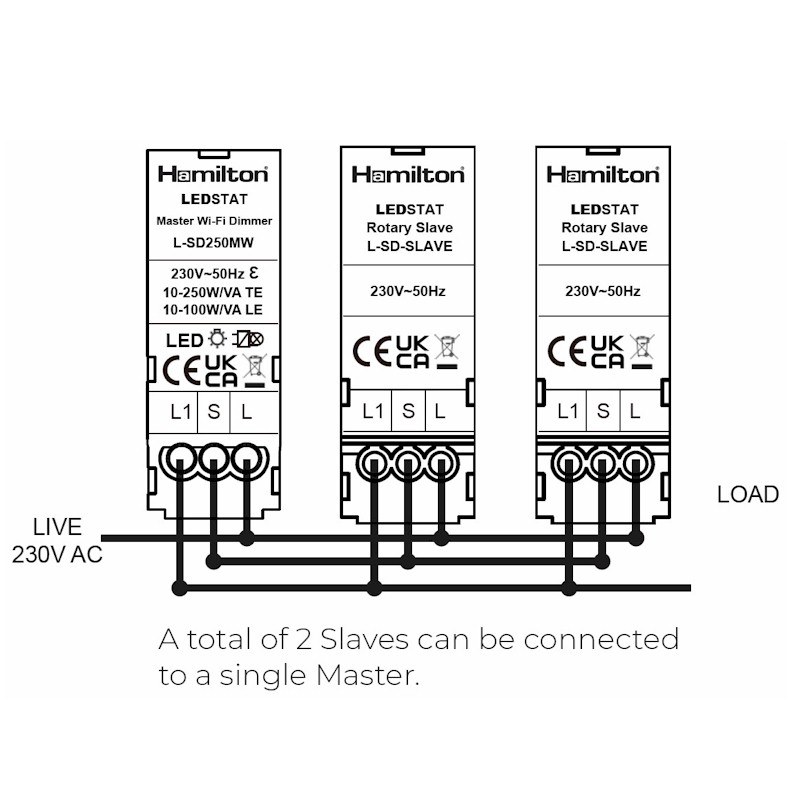

Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

436543296
Tech-Sheet-Page-Footer

712XL-SD250MW – Hartland Polished Brass 2g Wi-Fi Rotary Master LED Dimmer Polished Brass – Rated at 250W/VA in Trailing Edge (100W/VA Leading Edge)
product-code

S HART PB
family-code

S HARTLAND
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533434822
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

6
InsertSortOrder

002
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

2
MainInsertColour

Polished Brass
TrimColour

n/a
Last-Updated-At-Hamilton

04/03/2026
Plate-Finish

Polished Brass
Subheader2

Hartland Dimmers
QR-Instruction

https://online.fliphtml5.com/Hamilton/vmew/#p=1
