Hart RB 3g LEDITB100 2 way Dimmer RB

SKU: 7RB3XLEDITB100 Category:
Hart RB 3g LEDITB100 2 way Dimmer RB
Hart RB 3g LEDITB100 2 way Dimmer RB - Image 2
Hart RB 3g LEDITB100 2 way Dimmer RB - Image 3
SKU: 7RB3XLEDITB100 Category:

Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Richmond Bronze

Insert Finish

Richmond Bronze

Description

Hartland Richmond Bronze 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Richmond Bronze

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-012-003
Subheader2

Hartland Range
Insert-Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Plate-Finish

Richmond Bronze
Insert-Colour

Richmond Bronze
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
Uf-ItmLabelTechInsert

3XLEDITB
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Richmond Bronze 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Richmond Bronze
PlateFinish

Hartland Box Richmond Bronze
EAN13-Barcode

5017504108847

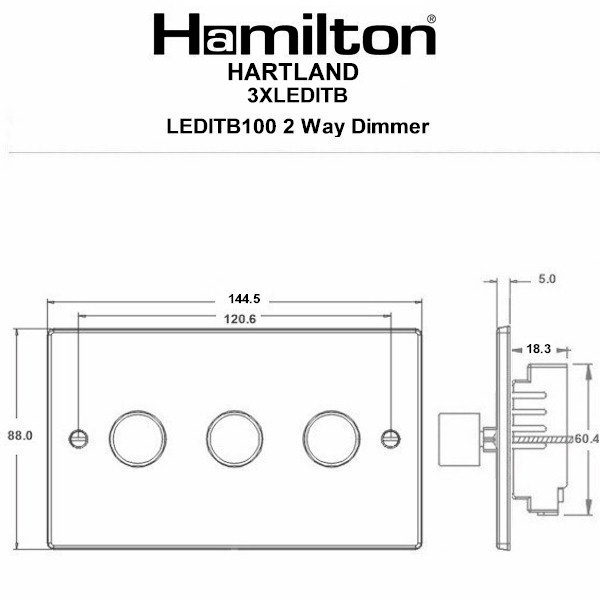

Dimensions(Nominal)

Double: Height = 88.0mm Width = 144.5mm Depth = 5.0mm
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Wattage

5-70W Per Gang
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Voltage

230V AC
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

436616806
Tech-Sheet-Page-Footer

7RB3XLEDITB100 – Hartland Richmond Bronze 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Richmond Bronze
description

Hart RB 3g LEDITB100 2 way Dimmer RB
product-code

S HART RB
family-code

S HARTLAND
last-inv

26/02/26
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533443017
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

010
HAM-SortOrder

012
InsertSortOrder

003
Generic-Size

Double
Height

88.0mm
Width

144.5mm
Depth

5.0mm
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

3
MainInsertColour

Richmond Bronze
TrimColour

n/a
Last-Updated-At-Hamilton

26/02/26
