Hart MB 4g LEDITB100 2 way Dimmer MB

SKU: 7MB4XLEDITB100 Category:
Hart MB 4g LEDITB100 2 way Dimmer MB
Hart MB 4g LEDITB100 2 way Dimmer MB - Image 2
Hart MB 4g LEDITB100 2 way Dimmer MB - Image 3
SKU: 7MB4XLEDITB100 Category:

Type

4 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Matt Black

Insert Finish

Matt Black

Description

Hartland Matt Black 4 gang 100W LED 2 Way Push On/Off Rotary Dimmer Matt Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-012-004
Subheader2

Hartland Range
Insert-Type

4 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Plate-Finish

Matt Black
Insert-Colour

Matt Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
Uf-ItmLabelTechInsert

4XLEDITB
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Matt Black 4 gang 100W LED 2 Way Push On/Off Rotary Dimmer Matt Black
PlateFinish

Hartland Box Matt Black
EAN13-Barcode

5017504108366

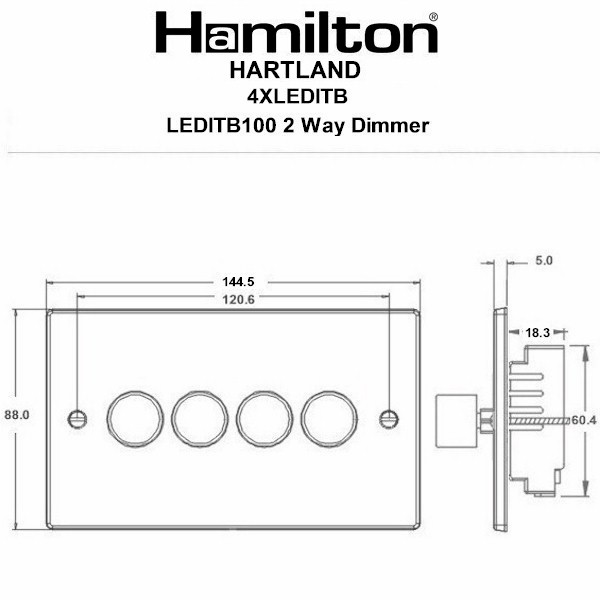

Dimensions(Nominal)

Double: Height = 88.0mm Width = 144.5mm Depth = 5.0mm
Weight

260 GR
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Wattage

5-70W Per Gang
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Voltage

230V AC
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

436616217
Tech-Sheet-Page-Footer

7MB4XLEDITB100 – Hartland Matt Black 4 gang 100W LED 2 Way Push On/Off Rotary Dimmer Matt Black
description

Hart MB 4g LEDITB100 2 way Dimmer MB
product-code

S HART MB
family-code

S HARTLAND
last-inv

27/02/26
unit-weight

260.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533442429
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

010
HAM-SortOrder

012
InsertSortOrder

004
Generic-Size

Double
Height

88.0mm
Width

144.5mm
Depth

5.0mm
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Matt Black
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

4
MainInsertColour

Matt Black
TrimColour

n/a
Last-Updated-At-Hamilton

27/02/26
