Description
Hartland Etrium Bronze 1g Rotary Companion Controller Etrium Bronze
SKU: 7EB1XLSDCOMP
Category: Hartland Dimmers
Type
1g Rotary Companion ControllerPlate Finish
Etrium BronzeInsert Finish
Etrium BronzeAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland |
| Page-Sort-Order | 010-007-001 |
| Subheader2 | Hartland Dimmers |
| Insert-Type | 1g Rotary Companion Controller |
| Plate-Finish | Etrium Bronze |
| Insert-Colour | Etrium Bronze |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/vmew/#p=1 |
| Uf-ItmLabelTechInsert | 1XL-SD-COMP |
| Uf-HAM-Plate-Range | Hartland Box |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland |
| Patents-And-Trade-Marks | Hartland is a Registered Trade Mark No. 2344778 |
| Item-Long-Description | Hartland Etrium Bronze 1g Rotary Companion Controller Etrium Bronze |
| PlateFinish | Hartland Box Etrium Bronze |
| EAN13-Barcode | 5017503003006 |
| Dimensions(Nominal) | Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 35mm |
| Wattage | N/A |
| Switched-Poles | Single |
| Current-Rating | n/a |
| Voltage | 230V AC |
| Maximum-Load | N/A |
| Mains-Frequency | 50Hz |
| IP-Rating | IP2XD |
| Terminal-Capacity-1 | 2x1mm² |
| Terminal-Capacity-2 | 2×1.5mm² |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Ambient-Operating-Temperatur | -5°C to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-2-1 |
| Additional-Notes | Can be used with the L-SD250MW, L-SD-INLINE-250W-WIFI or L-INLINE-250W-RF |
| Commodity-Code | 85365080 |

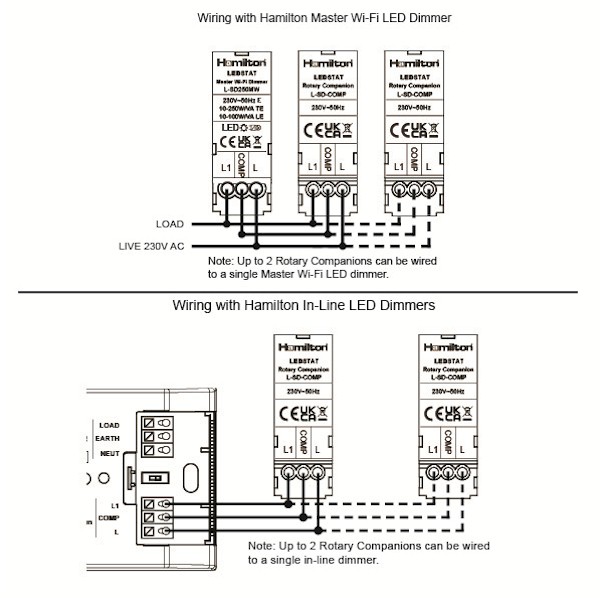

| Wiring-Image | WDSD-CP.jpg |
| Item-Image | 7EB1XL-SD-COMP.jpg |

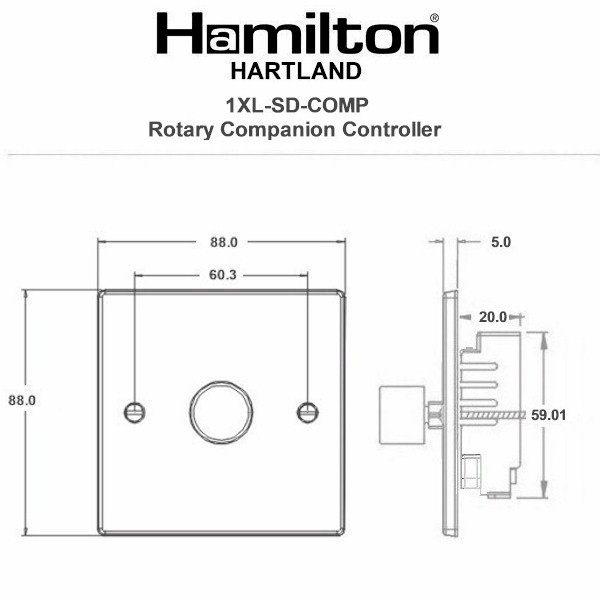

| Dimension-Image | TD-71XL-SD-COMP.jpg |
| Luckins-TSI | 438401352 |
| Tech-Sheet-Page-Footer | 7EB1XL-SD-COMP – Hartland Etrium Bronze 1g Rotary Companion Controller Etrium Bronze |
| description | Hart EB 1g Rotary Companion Contrl EB |
| product-code | S HART EB |
| family-code | S HARTLAND |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEUKC.jpg |
| Uf-LuckinsEDP | 4533459629 |
| Uf-HAMInnerBoxQty | 5 |
| Uf-OuterBoxQty | 50 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 10 |
| HAM-SortOrder | 7 |
| InsertSortOrder | 001 |
| Generic-Size | Single |
| Height | 88.0mm |
| Width | 88.0mm |
| Depth | 5.0mm |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Etrium Bronze |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Rotary 2 Way |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Etrium Bronze |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 23/01/2026 |
Download datasheet
