Hart EB 1g LEDITB250 2 way Dimmer EB

SKU: 7EB1XLEDITB250 Category:
Hart EB 1g LEDITB250 2 way Dimmer EB
Hart EB 1g LEDITB250 2 way Dimmer EB - Image 2
Hart EB 1g LEDITB250 2 way Dimmer EB - Image 3
SKU: 7EB1XLEDITB250 Category:

Type

1 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Etrium Bronze

Insert Finish

Etrium Bronze

Description

Hartland Etrium Bronze 1 gang 250W LED 2 Way Push On/Off Rotary Dimmer Etrium Bronze Minimum Load = 5W(LED) Maximum Load = 250W(LED) Trailing Edge / 150W(LED) Leading Edge

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-011-001
Subheader2

Hartland Range
Insert-Type

1 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Plate-Finish

Etrium Bronze
Insert-Colour

Etrium Bronze
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
Uf-ItmLabelTechInsert

1XLEDITB250
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Etrium Bronze 1 gang 250W LED 2 Way Push On/Off Rotary Dimmer Etrium Bronze Minimum Load = 5W(LED) Maximum Load = 250W(LED) Trailing Edge / 150W(LED) Leading Edge
PlateFinish

Hartland Box Etrium Bronze
EAN13-Barcode

5017503002986

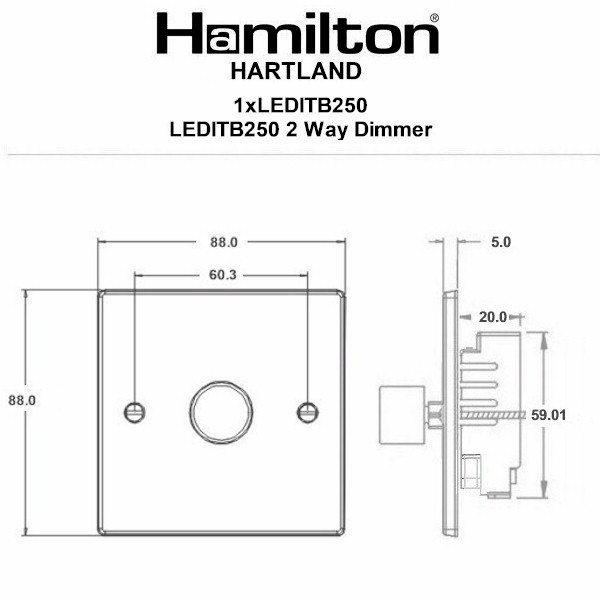

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Wattage

5-250W
Switched-Poles

Single
Current-Rating

1 Amp
Voltage

230V AC
Maximum-Load

5-250W
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

438401307
Tech-Sheet-Page-Footer

7EB1XLEDITB250 – Hartland Etrium Bronze 1 gang 250W LED 2 Way Push On/Off Rotary Dimmer Etrium Bronze Minimum Load = 5W(LED) Maximum Load = 250W(LED) Trailing Edge / 150W(LED) Leading Edge
description

Hart EB 1g LEDITB250 2 way Dimmer EB
product-code

S HART EB
family-code

S HARTLAND
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533459577
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

010
HAM-SortOrder

011
InsertSortOrder

001
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

1
MainInsertColour

Etrium Bronze
TrimColour

n/a
Last-Updated-At-Hamilton

07/02/26
