Description
Hartland Anthra Gray 2 gang 250W LED 2 Way Push On/Off Rotary Dimmer Anthra Gray Minimum Load = 5W(LED) Maximum Load = 250W(LED) Trailing Edge / 150W(LED) Leading Edge
SKU: 7A2XLEDITB250
Category: Hartland Dimmers
Type
2 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching DimmerPlate Finish
Anthra GrayInsert Finish
Anthra GrayAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland |
| Page-Sort-Order | 010-011-002 |
| Subheader2 | Hartland Range |
| Insert-Type | 2 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer |
| Plate-Finish | Anthra Gray |
| Insert-Colour | Anthra Gray |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/vqhu/#p=1 |
| Uf-ItmLabelTechInsert | 2XLEDITB250 |
| Uf-HAM-Plate-Range | Hartland Box |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland |
| Patents-And-Trade-Marks | Hartland is a Registered Trade Mark No. 2344778 |
| Item-Long-Description | Hartland Anthra Gray 2 gang 250W LED 2 Way Push On/Off Rotary Dimmer Anthra Gray Minimum Load = 5W(LED) Maximum Load = 250W(LED) Trailing Edge / 150W(LED) Leading Edge |
| PlateFinish | Hartland Box Anthra Gray |
| EAN13-Barcode | 5017504107789 |

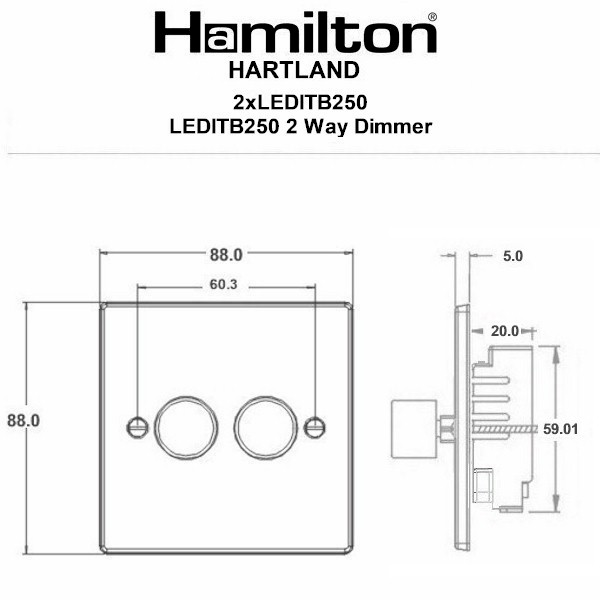

| Dimensions(Nominal) | Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 35mm |
| Wattage | 5-210W Per Gang |
| Switched-Poles | Single |
| Current-Rating | 0.9A Per Gang |
| Voltage | 230V AC |
| Maximum-Load | 5-210W Per Gang |
| Mains-Frequency | 50Hz |
| IP-Rating | IP2XD |
| Terminal-Capacity-1 | 2x1mm² |
| Terminal-Capacity-2 | 2×1.5mm² |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Ambient-Operating-Temperatur | -5°C to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-2-1 |
| Additional-Notes | Trailing Edge & Leading Edge Dimmer |
| Commodity-Code | 85365005 |
| Wiring-Image | WDLED250.jpg |
| Item-Image | 7A2XLEDITB250.jpg |
| Dimension-Image | TD-72XLEDITB250.jpg |
| Luckins-TSI | 436623022 |
| Tech-Sheet-Page-Footer | 7A2XLEDITB250 – Hartland Anthra Gray 2 gang 250W LED 2 Way Push On/Off Rotary Dimmer Anthra Gray Minimum Load = 5W(LED) Maximum Load = 250W(LED) Trailing Edge / 150W(LED) Leading Edge |
| description | Hart Anthra 2g LEDITB250 2 way Dimmer GA |
| product-code | S HART GA |
| family-code | S HARTLAND |
| last-inv | 08/10/25 |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533449231 |
| Uf-HAMInnerBoxQty | 5 |
| Uf-OuterBoxQty | 50 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 010 |
| HAM-SortOrder | 011 |
| InsertSortOrder | 002 |
| Generic-Size | Single |
| Height | 88.0mm |
| Width | 88.0mm |
| Depth | 5.0mm |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Anthra Gray |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Rotary 2 Way |
| WEB-NumberofGangs | 2 |
| MainInsertColour | Anthra Gray |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 07/02/26 |
