Hart GA 1g LEDITB100 2 way Dimmer GA

SKU: 7A1XLEDITB100 Category:
Hart GA 1g LEDITB100 2 way Dimmer GA
Hart GA 1g LEDITB100 2 way Dimmer GA - Image 2
Hart GA 1g LEDITB100 2 way Dimmer GA - Image 3
SKU: 7A1XLEDITB100 Category:

Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Anthra Gray

Insert Finish

Anthra Gray

Description

Hartland Anthra Gray 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Anthra Gray

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-012-001
Subheader2

Hartland Dimmers
Insert-Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Plate-Finish

Anthra Gray
Insert-Colour

Anthra Gray
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
Uf-ItmLabelTechInsert

1XLEDITB
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Anthra Gray 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Anthra Gray
PlateFinish

Hartland Box Anthra Gray
EAN13-Barcode

5017504107727
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Wattage

5-100W (10 LED Lamps MAX)
Switched-Poles

Single
Current-Rating

0.4A
Voltage

230V AC
Maximum-Load

5-100W (10 LED Lamps MAX)
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005

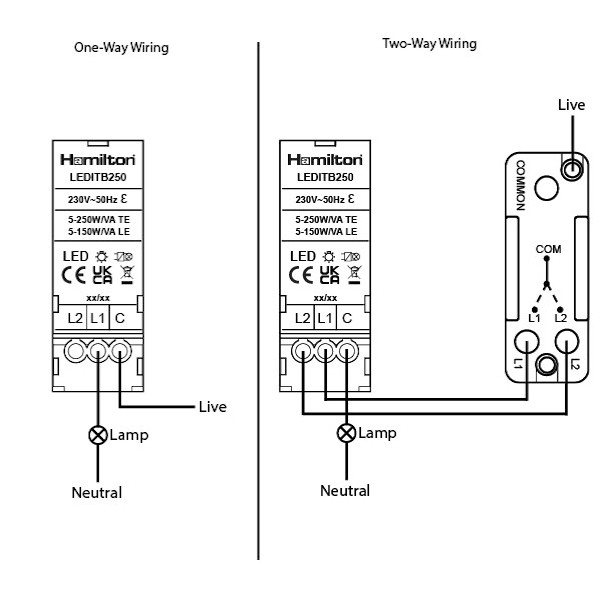

Wiring-Image

Item-Image

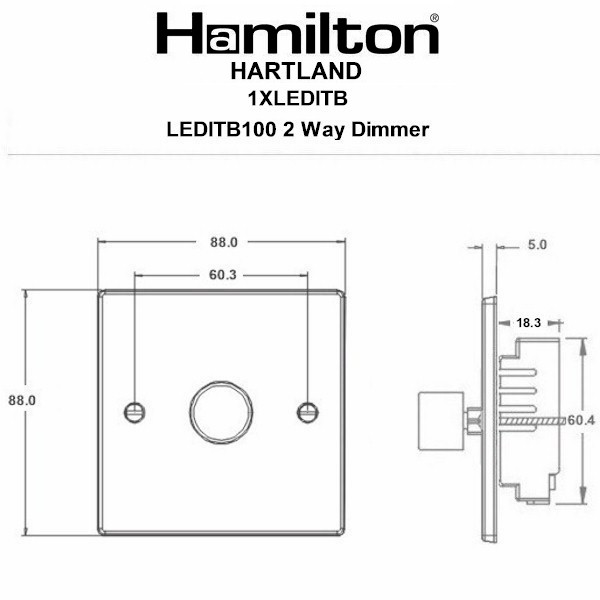

Dimension-Image

Luckins-TSI

436616369
Tech-Sheet-Page-Footer

7A1XLEDITB100 – Hartland Anthra Gray 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Anthra Gray
description

Hart Anthra 1g LEDITB100 2 way Dimmer GA
product-code

S HART GA
family-code

S HARTLAND
last-inv

12/11/2025
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533442571
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

12
InsertSortOrder

001
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Anthra Gray
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

1
MainInsertColour

Anthra Gray
TrimColour

n/a
Last-Updated-At-Hamilton

03/02/2026
