Hart G2 SS DP SS2 + USBULTx2 SS/WH

Hart G2 SS DP SS2 + USBULTx2 SS/WH
Hart G2 SS DP SS2 + USBULTx2 SS/WH - Image 2
Hart G2 SS DP SS2 + USBULTx2 SS/WH - Image 3

Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2x2.4A (4.8A Total)

Plate Finish

Satin Steel

Insert Finish

Satin Steel/White

Description

Hartland G2 Satin Steel 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Satin Steel/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-023-001
Insert-Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2×2.4A (4.8A Total)
Insert-Colour

Satin Steel/White
Uf-ItmLabelTechInsert

SS2USBX2ULT
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Satin Steel 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Satin Steel/White
PlateFinish

Hartland G2 Satin Steel
EAN13-Barcode

5051164002459
Dimensions(Nominal)

Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Switched-Poles

Double
Current-Rating

13 Amp, USB 2 x 2.4A
Maximum-Load

13 Amp, USB = 2.4A X 2
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990

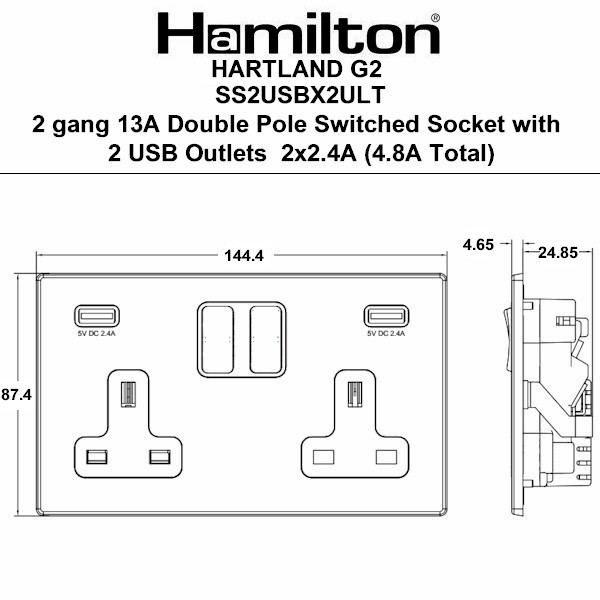

Dimension-Image

Luckins-TSI

407518506
Tech-Sheet-Page-Footer

7G24SS2USBULTSS-W – Hartland G2 Satin Steel 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Satin Steel/White
product-code

S HTG2 SS
family-code

S HART G2
last-inv

16/02/26
unit-weight

246.00000
weight-units

GR
Uf-LuckinsEDP

4533399187
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

023
InsertSortOrder

001
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Satin Steel
TrimColour

White
Last-Updated-At-Hamilton

16/02/26
Wiring-Image

Item-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm
Minimum-Wall-Box-Depth

35mm
Weight

246 GR
Voltage

180/250V AC USB = 5V
IP-Rating

IP2XD
description

Hart G2 SS DP SS2 + USBULTx2 SS/WH
Height

87.4mm
Width

144.4mm
Depth

4.65mm
Plate-Finish

Satin Steel
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1

Download datasheet
