Hart G2 PB SP SS1 + USBx1 PB/WH

Hart G2 PB SP SS1 + USBx1 PB/WH
Hart G2 PB SP SS1 + USBx1 PB/WH - Image 2
Hart G2 PB SP SS1 + USBx1 PB/WH - Image 3

Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1x2.1A

Plate Finish

Polished Brass

Insert Finish

Polished Brass/White

Description

Hartland G2 Polished Brass 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Polished Brass/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-022-001
Insert-Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1×2.1A
Insert-Colour

Polished Brass/White
Uf-ItmLabelTechInsert

SS1USBX1
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Polished Brass 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Polished Brass/White
PlateFinish

Hartland G2 Polished Brass
EAN13-Barcode

5051164024765
Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

Single
Current-Rating

13 Amp, USB 1 x 2.1A
Maximum-Load

13 Amp, USB = 2.1A
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990

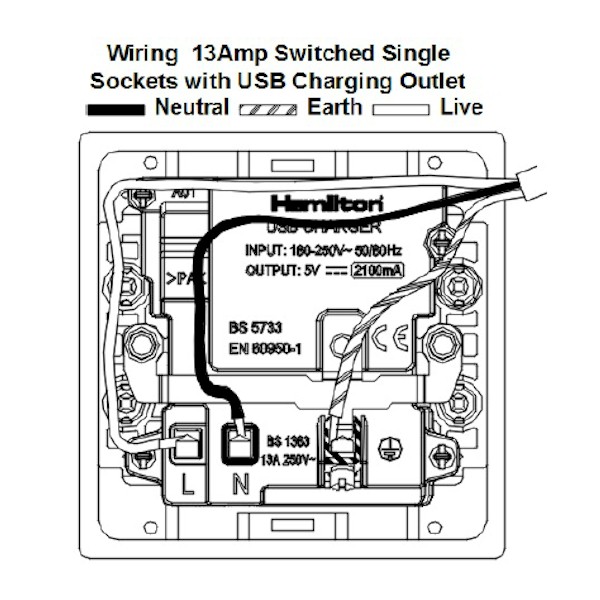

Wiring-Image

Item-Image

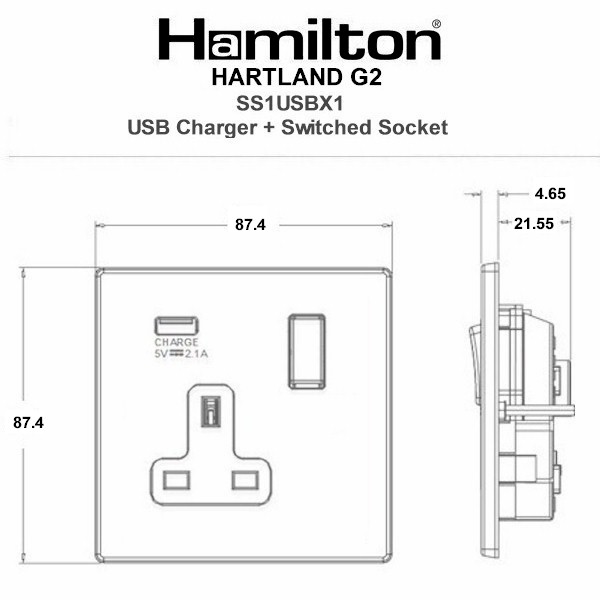

Dimension-Image

Luckins-TSI

423821455
Tech-Sheet-Page-Footer

7G21SS1USBPB-W – Hartland G2 Polished Brass 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Polished Brass/White
product-code

S HTG2 PB
family-code

S HART G2
last-inv

20/11/2024
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533414981
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

22
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Single Pole
WEB-NumberofGangs

1
MainInsertColour

Polished Brass
TrimColour

White
Last-Updated-At-Hamilton

22/01/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Voltage

180/250V AC, USB = 5V
IP-Rating

IP2XD
description

Hart G2 PB SP SS1 + USBx1 PB/WH
Height

87.4mm
Width

87.4mm
Depth

4.65mm
Plate-Finish

Polished Brass
Subheader2

Hartland G2 USB Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1

Download datasheet
