Hart G2 GA DP SS2 + USBULTx2 GA/QG

Hart G2 GA DP SS2 + USBULTx2 GA/QG
Hart G2 GA DP SS2 + USBULTx2 GA/QG - Image 2
Hart G2 GA DP SS2 + USBULTx2 GA/QG - Image 3

Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2x2.4A (4.8A Total)

Plate Finish

Anthra Gray

Insert Finish

Anthra Gray/Quartz Grey

Description

Hartland G2 Anthra Gray 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Anthra Gray/Quartz Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-023-001
Insert-Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2×2.4A (4.8A Total)
Insert-Colour

Anthra Gray/Quartz Grey
Uf-ItmLabelTechInsert

SS2USBX2ULT
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Anthra Gray 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Anthra Gray/Quartz Grey
PlateFinish

Hartland G2 Anthra Gray
EAN13-Barcode

5051164028947

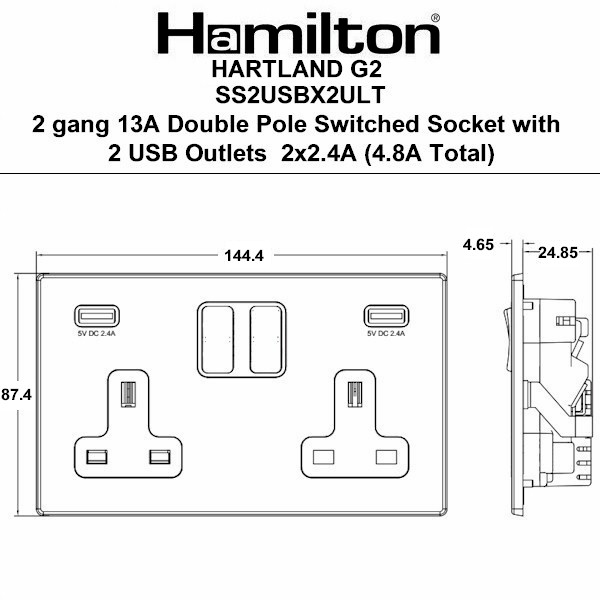

Dimensions(Nominal)

Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Switched-Poles

Double
Current-Rating

13 Amp, USB 2 x 2.4A
Maximum-Load

13 Amp, USB = 2.4A X 2
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

433714785
Tech-Sheet-Page-Footer

7G2ASS2USBULTGA-QG – Hartland G2 Anthra Gray 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Anthra Gray/Quartz Grey
product-code

S HTG2 GA
family-code

S HART G2
last-inv

11/02/26
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533419643
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

023
InsertSortOrder

001
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Uf-HAMPlateFinish

Anthra Gray
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Anthra Gray
TrimColour

Quartz Grey
Last-Updated-At-Hamilton

11/02/26
Fixing-Hole-Centres

Box Fixing = 120.6mm
Minimum-Wall-Box-Depth

35mm
Voltage

180/250V AC USB = 5V
IP-Rating

IP2XD
description

Hart G2 GA DP SS2 + USBULTx2 GA/QG
Height

87.4mm
Width

144.4mm
Depth

4.65mm
Plate-Finish

Anthra Gray
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1

Download datasheet
