Hart G2 BC DP SS2+USB+USB C BC/WH

SKU: 7G27SS2USBCBCW Category:
Hart G2 BC DP SS2+USB+USB C BC/WH
Hart G2 BC DP SS2+USB+USB C BC/WH - Image 2
SKU: 7G27SS2USBCBCW Category:

Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2x2.4A (4.8A Total)

Plate Finish

Bright Chrome

Insert Finish

Bright Chrome/White

Description

Hartland G2 Bright Chrome 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Bright Chrome/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-023-002
Insert-Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2×2.4A (4.8A Total)
Insert-Colour

Bright Chrome/White
Uf-ItmLabelTechInsert

SS2USBC
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Bright Chrome 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Bright Chrome/White
PlateFinish

Hartland G2 Bright Chrome
EAN13-Barcode

5051164001063

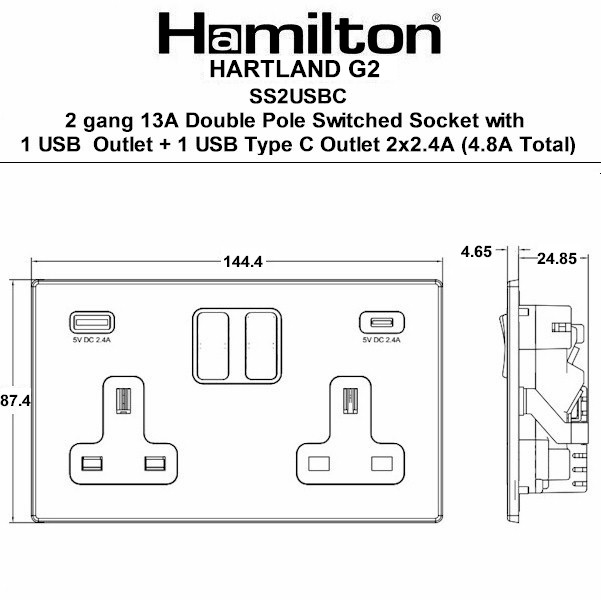

Dimensions(Nominal)

Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Commodity-Code

85366990
Dimension-Image

Luckins-TSI

407518988
Tech-Sheet-Page-Footer

7G27SS2USBCBC-W – Hartland G2 Bright Chrome 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Bright Chrome/White
product-code

S HTG2 BC
family-code

S HART G2
last-inv

24/02/26
unit-weight

271.00000
weight-units

GR
Uf-LuckinsEDP

4533399666
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

023
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Bright Chrome
TrimColour

White
Last-Updated-At-Hamilton

24/02/26
Switched-Poles

Double
Current-Rating

13 Amp, 1 x 2.4A Type A + 1 x 2.4A Type C
Maximum-Load

13 Amp, USB TYPE A & C = 2.4A
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm
Minimum-Wall-Box-Depth

35mm
Weight

271 GR
Voltage

180/250V AC USB TYPE A & C =5V
IP-Rating

IP2XD
description

Hart G2 BC DP SS2+USB+USB C BC/WH
Height

87.4mm
Width

144.4mm
Depth

4.65mm
Plate-Finish

Bright Chrome
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
