Hart G2 AB SP SS1 + USBCx1 AB/BL

SKU: 7G29SS1USBCABB Category:
Hart G2 AB SP SS1 + USBCx1 AB/BL
Hart G2 AB SP SS1 + USBCx1 AB/BL - Image 2
SKU: 7G29SS1USBCABB Category:

Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet Type C Outlet 1x2.1A

Plate Finish

Antique Brass

Insert Finish

Antique Brass/Black

Description

Hartland G2 Antique Brass 1 gang 13A Single Pole Switched Socket with 1 USB Outlet Type C Outlet 1×2.1A Antique Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-022-002
Subheader2

Hartland G2 Range
Insert-Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet Type C Outlet 1×2.1A
Plate-Finish

Antique Brass
Insert-Colour

Antique Brass/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Uf-ItmLabelTechInsert

SS1USBC
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Antique Brass 1 gang 13A Single Pole Switched Socket with 1 USB Outlet Type C Outlet 1×2.1A Antique Brass/Black
PlateFinish

Hartland G2 Antique Brass
EAN13-Barcode

5051164035778

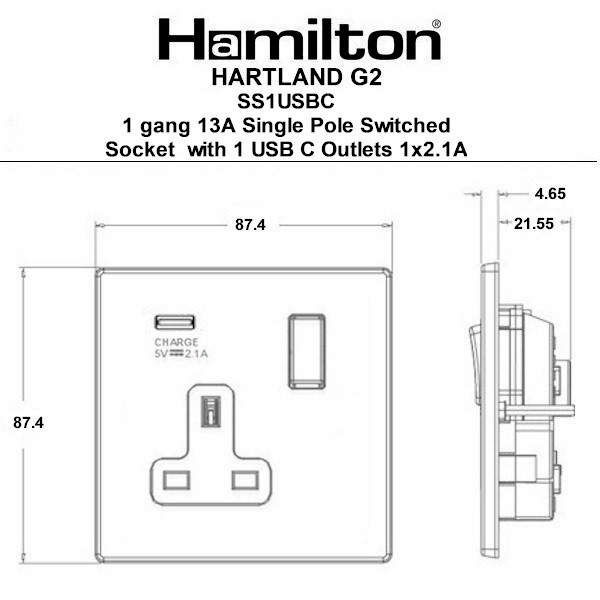

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Single
Current-Rating

13 Amp, 1 X USB Type C Outlet 2.1A
Voltage

180/250V AC USB TYPE C =5V
Maximum-Load

13 Amp, USB TYPE C = 1x 2.1A
Mains-Frequency

50/60Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Wiring-Image

Dimension-Image

Luckins-TSI

438403486
Tech-Sheet-Page-Footer

7G29SS1USBCAB-B – Hartland G2 Antique Brass 1 gang 13A Single Pole Switched Socket with 1 USB Outlet Type C Outlet 1×2.1A Antique Brass/Black
description

Hart G2 AB SP SS1 + USBCx1 AB/BL
product-code

S HTG2 AB
family-code

S HART G2
last-inv

03/02/26
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533461756
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

022
InsertSortOrder

002
Generic-Size

Single
Height

87.4mm
Width

87.4mm
Depth

4.65mm
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
MainInsertColour

Antique Brass
TrimColour

Black
Last-Updated-At-Hamilton

03/02/26
