Hart G2 BC 1g Telephone Master WH

SKU: 7G27TCMW Category:
Hart G2 BC 1g Telephone Master WH
Hart G2 BC 1g Telephone Master WH - Image 2
Hart G2 BC 1g Telephone Master WH - Image 3
Hart G2 BC 1g Telephone Master WH - Image 4
SKU: 7G27TCMW Category:

Type

1 gang Telephone Master

Plate Finish

Bright Chrome

Insert Finish

White

Description

Hartland G2 Bright Chrome 1 gang Telephone Master White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-031-003
Insert-Type

1 gang Telephone Master
Insert-Colour

White
Uf-ItmLabelTechInsert

TCM
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Bright Chrome 1 gang Telephone Master White
PlateFinish

Hartland G2 Bright Chrome
EAN13-Barcode

5051164001100
Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990
Wiring-Image

Item-Image

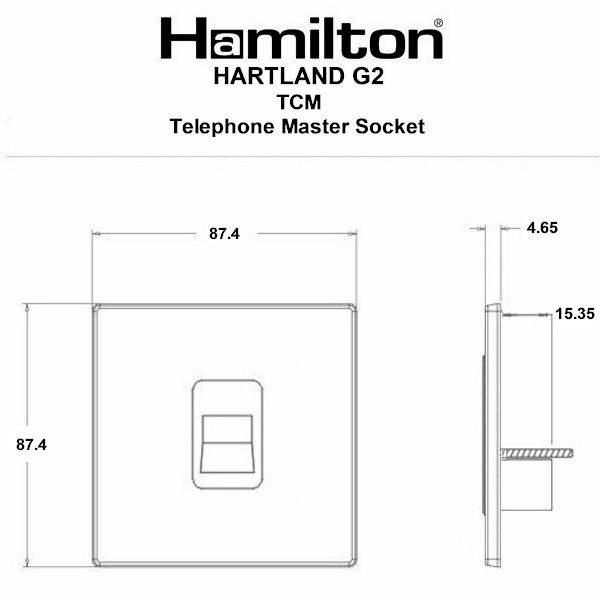

Dimension-Image

Luckins-TSI

407519055
Tech-Sheet-Page-Footer

7G27TCMW – Hartland G2 Bright Chrome 1 gang Telephone Master White
product-code

S HTG2 BC
family-code

S HART G2
last-inv

24/01/2024
unit-weight

93.00000
weight-units

GR
Uf-LuckinsEDP

4533399734
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

31
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Telephone Master
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

22/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

25mm
Weight

93 GR
IP-Rating

IP2XD
description

Hart G2 BC 1g Telephone Master WH
Height

87.4mm
Width

87.4mm
Depth

4.65mm
Plate-Finish

Bright Chrome
Subheader2

Hartland G2 Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
