Hart G2 SS 1g Telephone Master QG

Hart G2 SS 1g Telephone Master QG
Hart G2 SS 1g Telephone Master QG - Image 2
Hart G2 SS 1g Telephone Master QG - Image 3
Hart G2 SS 1g Telephone Master QG - Image 4

Type

1 gang Telephone Master

Plate Finish

Satin Steel

Insert Finish

Quartz Grey

Description

Hartland G2 Satin Steel 1 gang Telephone Master Quartz Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-031-003
Insert-Type

1 gang Telephone Master
Insert-Colour

Quartz Grey
Uf-ItmLabelTechInsert

TCM
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Satin Steel 1 gang Telephone Master Quartz Grey
PlateFinish

Hartland G2 Satin Steel
EAN13-Barcode

5051164002831

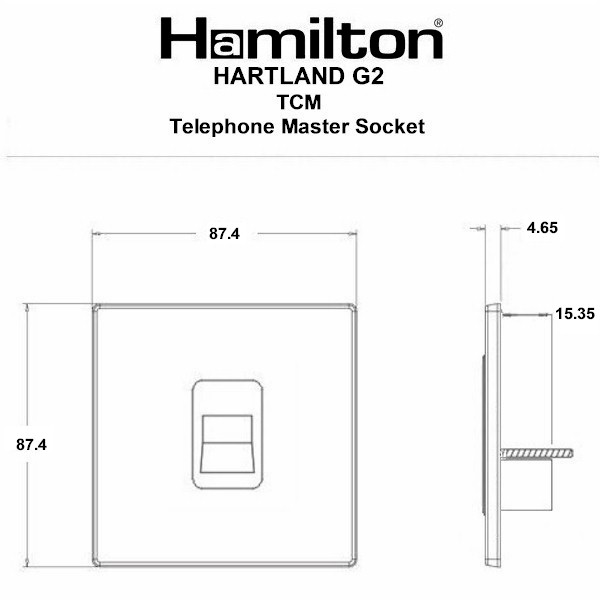

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990
Wiring-Image

Dimension-Image

Luckins-TSI

407518522
Tech-Sheet-Page-Footer

7G24TCMQG – Hartland G2 Satin Steel 1 gang Telephone Master Quartz Grey
product-code

S HTG2 SS
family-code

S HART G2
last-inv

28/10/2025
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533399200
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

31
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Telephone Master
WEB-NumberofGangs

1
MainInsertColour

Quartz Grey
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Item-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

Hart G2 SS 1g Telephone Master QG
Height

87.4mm
Width

87.4mm
Depth

4.65mm
Plate-Finish

Satin Steel
Subheader2

Hartland G2 Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
