Hart G2 BC 1g No-Isolat TV (Female) QG

SKU: 7G27DTVFQG Category:
Hart G2 BC 1g No-Isolat TV (Female) QG
Hart G2 BC 1g No-Isolat TV (Female) QG - Image 2
SKU: 7G27DTVFQG Category:

Type

1 gang Non-Isolated TV (female) (DAB Compatible)

Plate Finish

Bright Chrome

Insert Finish

Quartz Grey

Description

Hartland G2 Bright Chrome 1 gang Non-Isolated TV (Female) (DAB Compatible) Quartz Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-031-001
Subheader2

Hartland G2 Television / Data
Insert-Type

1 gang Non-Isolated TV (female) (DAB Compatible)
Plate-Finish

Bright Chrome
Insert-Colour

Quartz Grey
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
Uf-ItmLabelTechInsert

DTVF
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Bright Chrome 1 gang Non-Isolated TV (Female) (DAB Compatible) Quartz Grey
PlateFinish

Hartland G2 Bright Chrome
EAN13-Barcode

5017504108274
Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Switched-Poles

N/A
Current-Rating

n/a
IP-Rating

IP2XD
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733. BS EN 50083-2: 2012/A1:2015. BS EN 61169-2:2007
EuroFix-Additional-Notes

TV Outlet (IEC 169-2 Female Socket) Usually used for FM (DAB) outlet
Frequencies-1

TV DC=5-2200 MHz
Commodity-Code

85367000
Wiring-Image

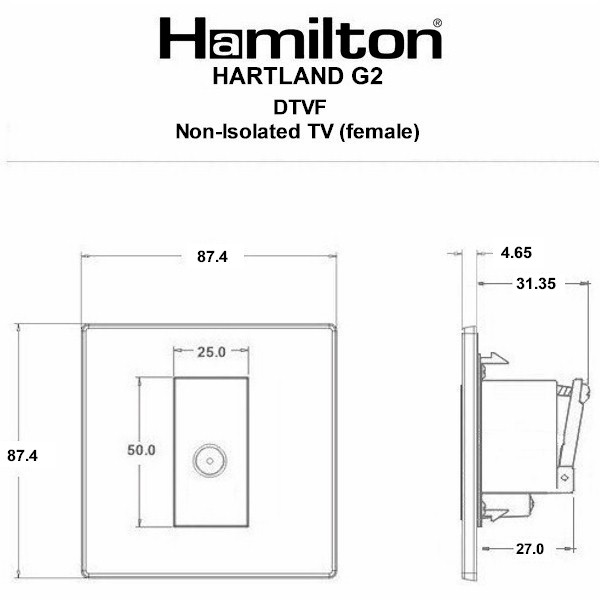

Dimension-Image

Luckins-TSI

436616107
Tech-Sheet-Page-Footer

7G27DTVFQG – Hartland G2 Bright Chrome 1 gang Non-Isolated TV (Female) (DAB Compatible) Quartz Grey
description

Hart G2 BC 1g No-Isolat TV (Female) QG
product-code

S HTG2 BC
family-code

S HART G2
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533442319
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

31
InsertSortOrder

001
Generic-Size

Single
Height

87.4mm
Width

87.4mm
Depth

4.65mm
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV Non-Isolated Female
WEB-NumberofGangs

1
MainInsertColour

Quartz Grey
TrimColour

n/a
Last-Updated-At-Hamilton

13/02/2026
