Hart G2 SS 1g 10AX 2 Way Rkr SS/WH

Hart G2 SS 1g 10AX 2 Way Rkr SS/WH
Hart G2 SS 1g 10AX 2 Way Rkr SS/WH - Image 2
Hart G2 SS 1g 10AX 2 Way Rkr SS/WH - Image 3

Type

1 gang 10AX 2 Way Rocker

Plate Finish

Satin Steel

Insert Finish

Satin Steel/White

Description

Hartland G2 Satin Steel 1 gang 10AX 2 Way Rocker Satin Steel/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-001-001
Insert-Type

1 gang 10AX 2 Way Rocker
Insert-Colour

Satin Steel/White
Uf-ItmLabelTechInsert

MGR21
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Satin Steel 1 gang 10AX 2 Way Rocker Satin Steel/White
PlateFinish

Hartland G2 Satin Steel
EAN13-Barcode

5051164002176

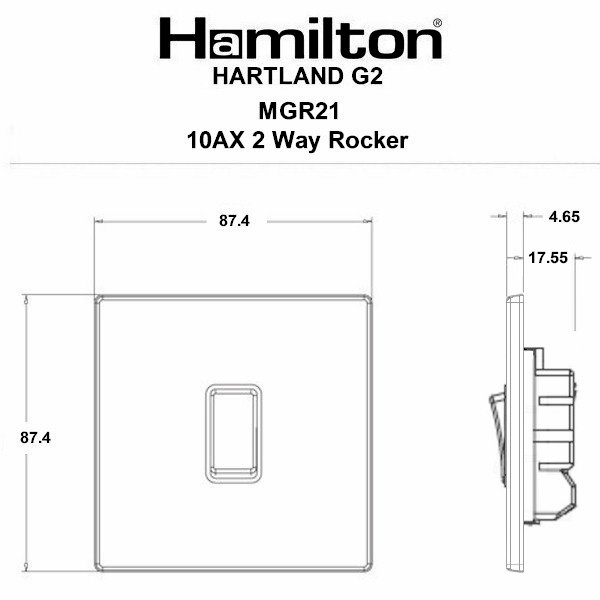

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

407520688
Tech-Sheet-Page-Footer

7G24R21SS-W – Hartland G2 Satin Steel 1 gang 10AX 2 Way Rocker Satin Steel/White
product-code

S HTG2 SS
family-code

S HART G2
last-inv

20/02/26
unit-weight

105.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533401363
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

001
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

n/a
WEB-InsertType

2 Way
WEB-NumberofGangs

1
MainInsertColour

Satin Steel
TrimColour

White
Last-Updated-At-Hamilton

20/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Satin Steel
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Weight

105 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart G2 SS 1g 10AX 2 Way Rkr SS/WH
Height

87.4mm
Width

87.4mm
Depth

4.65mm
