Hart G2 PB 10A Triple Pole Rkr PB/BL

Hart G2 PB 10A Triple Pole Rkr PB/BL
Hart G2 PB 10A Triple Pole Rkr PB/BL - Image 2
Hart G2 PB 10A Triple Pole Rkr PB/BL - Image 3

Type

1 gang 10A Triple Pole Rocker

Plate Finish

Polished Brass

Insert Finish

Polished Brass/Black

Description

Hartland G2 Polished Brass 1 gang 10A Triple Pole Rocker Polished Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-001-051
Subheader2

Hartland G2 Range
Insert-Type

1 gang 10A Triple Pole Rocker
Plate-Finish

Polished Brass
Insert-Colour

Polished Brass/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Uf-ItmLabelTechInsert

TP
Uf-HAM-Plate-Range

Hartland G2 Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Polished Brass 1 gang 10A Triple Pole Rocker Polished Brass/Black
PlateFinish

Hartland G2 Box Polished Brass
EAN13-Barcode

5017503008391
Minimum-Wall-Box-Depth

25mm
Switched-Poles

Triple
Current-Rating

10A
Voltage

220/250V AC
Maximum-Load

10 Amp resistive
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3 x2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080

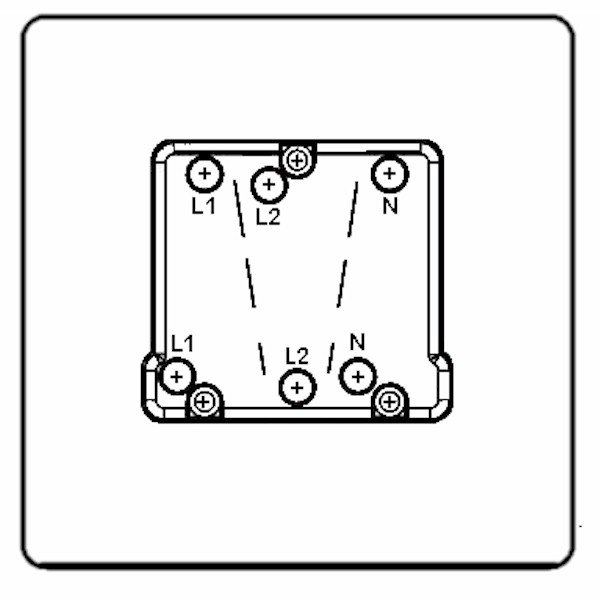

Wiring-Image

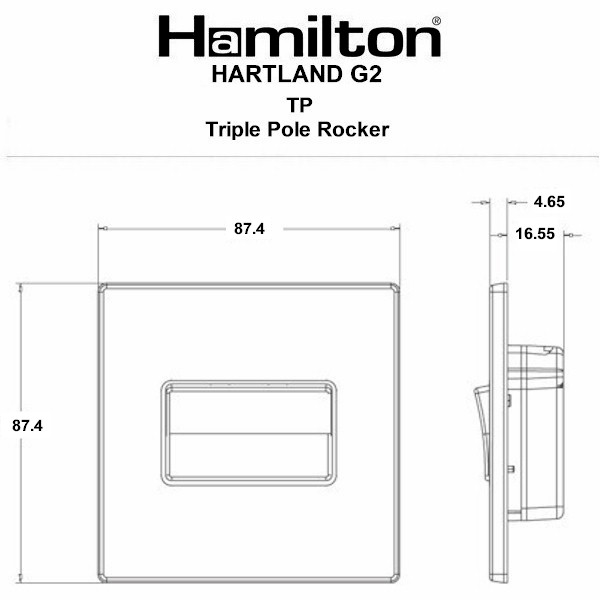

Dimension-Image

Luckins-TSI

438636693
Tech-Sheet-Page-Footer

7G21TPPB-B – Hartland G2 Polished Brass 1 gang 10A Triple Pole Rocker Polished Brass/Black
description

Hart G2 PB 10A Triple Pole Rkr PB/BL
product-code

S HTG2 PB
family-code

S HART G2
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533467598
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

001
InsertSortOrder

051
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Triple Pole
WEB-NumberofGangs

1
MainInsertColour

Polished Brass
TrimColour

Black
Last-Updated-At-Hamilton

11/02/26
