Hart G2 BK 4g 10AX 2 Way Rkr BK/BL

Hart G2 BK 4g 10AX 2 Way Rkr BK/BL
Hart G2 BK 4g 10AX 2 Way Rkr BK/BL - Image 2
Hart G2 BK 4g 10AX 2 Way Rkr BK/BL - Image 3

Type

4 gang 10AX 2 Way Rocker

Plate Finish

Black Nickel

Insert Finish

Black Nickel/Black

Description

Hartland G2 Black Nickel 4 gang 10AX 2 Way Rocker Black Nickel/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-001-004
Insert-Type

4 gang 10AX 2 Way Rocker
Insert-Colour

Black Nickel/Black
Uf-ItmLabelTechInsert

MGR24
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Black Nickel 4 gang 10AX 2 Way Rocker Black Nickel/Black
PlateFinish

Hartland G2 Black Nickel
EAN13-Barcode

5051164005580

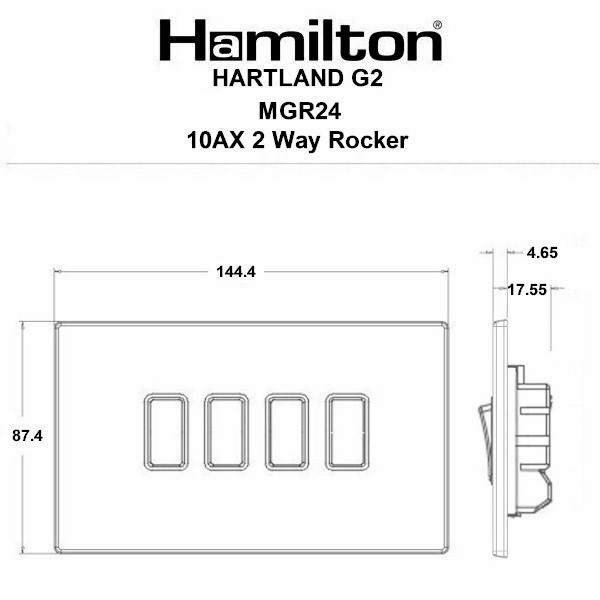

Dimensions(Nominal)

Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

407519495
Tech-Sheet-Page-Footer

7G28R24BK-B – Hartland G2 Black Nickel 4 gang 10AX 2 Way Rocker Black Nickel/Black
product-code

S HTG2 BK
family-code

S HART G2
last-inv

12/11/2025
unit-weight

210.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533400173
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

1
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

2 Way
WEB-NumberofGangs

4
MainInsertColour

Black Nickel
TrimColour

Black
Last-Updated-At-Hamilton

31/12/2025
Fixing-Hole-Centres

Box Fixing = 120.6mm
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Black Nickel
Subheader2

Hartland G2 Rocker Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Weight

210 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart G2 BK 4g 10AX 2 Way Rkr BK/BL
Height

87.4mm
Width

144.4mm
Depth

4.65mm
