Description
Hartland G2 Antique Brass 3 gang 10AX 2 Way Rocker Antique Brass/Black
SKU: 7G29R23ABB
Category: Hartland G2 Rocker Switches
Type
3 gang 10AX 2 Way RockerPlate Finish
Antique BrassInsert Finish
Antique Brass/BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland G2 |
| Page-Sort-Order | 011-001-003 |
| Insert-Type | 3 gang 10AX 2 Way Rocker |
| Insert-Colour | Antique Brass/Black |
| Uf-ItmLabelTechInsert | MGR23 |
| Uf-HAM-Plate-Range | Hartland G2 |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland G2 |
| Patents-And-Trade-Marks | Hartland G2 is a Registered Trade Mark No UK00003388376 |
| Item-Long-Description | Hartland G2 Antique Brass 3 gang 10AX 2 Way Rocker Antique Brass/Black |
| PlateFinish | Hartland G2 Antique Brass |
| EAN13-Barcode | 5051164003227 |

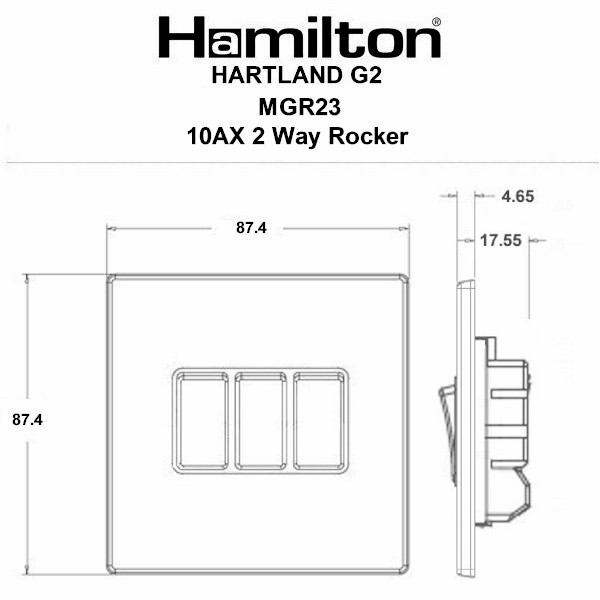

| Dimensions(Nominal) | Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm |
| Switched-Poles | Single |
| Current-Rating | 10AX |
| Maximum-Load | 10 Amp inductive |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 5x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 1×2.5mm² |
| Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-1 |
| Commodity-Code | 85365080 |
| Wiring-Image | WD2Wv2.jpg |
| Item-Image | 7G29R23AB-B.jpg |
| Dimension-Image | TD-7G2MGR23.jpg |
| Luckins-TSI | 407519288 |
| Tech-Sheet-Page-Footer | 7G29R23AB-B – Hartland G2 Antique Brass 3 gang 10AX 2 Way Rocker Antique Brass/Black |
| product-code | S HTG2 AB |
| family-code | S HART G2 |
| last-inv | 03/02/2026 |
| unit-weight | 126.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533399967 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 11 |
| HAM-SortOrder | 1 |
| InsertSortOrder | 003 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Uf-HAMPlateFinish | Antique Brass |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | 2 Way |
| WEB-NumberofGangs | 3 |
| MainInsertColour | Antique Brass |
| TrimColour | Black |
| Last-Updated-At-Hamilton | 03/02/2026 |
| Fixing-Hole-Centres | Box Fixing = 60.3mm |
| Minimum-Wall-Box-Depth | 25mm |
| Plate-Finish | Antique Brass |
| Subheader2 | Hartland G2 Rocker Switches |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/uzsv/#p=1 |
| Weight | 126 GR |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Hart G2 AB 3g 10AX 2 Way Rkr AB/BL |
| Height | 87.4mm |
| Width | 87.4mm |
| Depth | 4.65mm |
