Hart G2 PB Shaver Dual Volt Socket WH

Hart G2 PB Shaver Dual Volt Socket WH
Hart G2 PB Shaver Dual Volt Socket WH - Image 2
Hart G2 PB Shaver Dual Volt Socket WH - Image 3
Hart G2 PB Shaver Dual Volt Socket WH - Image 4

Type

Shaver Dual Voltage Unswitched Socket (Vertically Mounted)

Plate Finish

Polished Brass

Insert Finish

White

Description

Hartland G2 Polished Brass Shaver Dual Voltage Unswitched Socket (Vertically Mounted) White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-021-011
Insert-Type

Shaver Dual Voltage Unswitched Socket (Vertically Mounted)
Insert-Colour

White
Uf-ItmLabelTechInsert

SHS
Uf-HAM-Plate-Range

Hartland G2 Vertical
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Polished Brass Shaver Dual Voltage Unswitched Socket (Vertically Mounted) White
PlateFinish

Hartland G2 Vertical Polished Brass
EAN13-Barcode

5051164024727
Dimensions(Nominal)

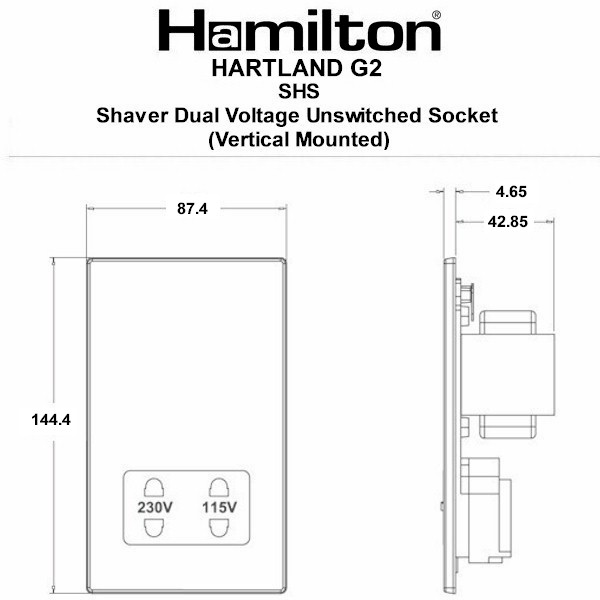

Double: Height = 144.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

None
Current-Rating

20VA
Maximum-Load

200/250V input; 115/230V 20VA output
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

9x1mm²
Earth-Terminal-Capacity-2

6×1.5mm²
Earth-Terminal-Capacity-3

4×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 61558-2-5 + BS 4573
Additional-Notes

Must be mounted vertically. Shuttered :Yes. Box Depth 47mm
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

423821361
Tech-Sheet-Page-Footer

7G21SHSW – Hartland G2 Polished Brass Shaver Dual Voltage Unswitched Socket (Vertically Mounted) White
product-code

S HTG2 PB
family-code

S HART G2
last-inv

12/04/2025
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533414897
Uf-HAMInnerBoxQty

2
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

21
InsertSortOrder

011
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Shaver Socket
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

23/01/2026
Fixing-Hole-Centres

Box Fixing = 120.6mm
Minimum-Wall-Box-Depth

47mm
Plate-Finish

Polished Brass
Subheader2

Hartland G2 Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/bzky/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart G2 PB Shaver Dual Volt Socket WH
Height

144.4mm
Width

87.4mm
Depth

4.65mm
