Description
Hartland G2 Anthra Gray Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Quartz Grey
Hart G2 GA Shaver Dual Volt Skt QG
Type
Shaver Dual Voltage Unswitched Socket (Vertically Mounted)Plate Finish
Anthra GrayInsert Finish
Quartz GreyAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland G2 |
| Page-Sort-Order | 011-021-011 |
| Insert-Type | Shaver Dual Voltage Unswitched Socket (Vertically Mounted) |
| Insert-Colour | Quartz Grey |
| Uf-ItmLabelTechInsert | SHS |
| Uf-HAM-Plate-Range | Hartland G2 Vertical |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Hartland G2 |
| Patents-And-Trade-Marks | Hartland G2 is a Registered Trade Mark No UK00003388376 |
| Item-Long-Description | Hartland G2 Anthra Gray Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Quartz Grey |
| PlateFinish | Hartland G2 Vertical Anthra Gray |
| EAN13-Barcode | 5051164028879 |

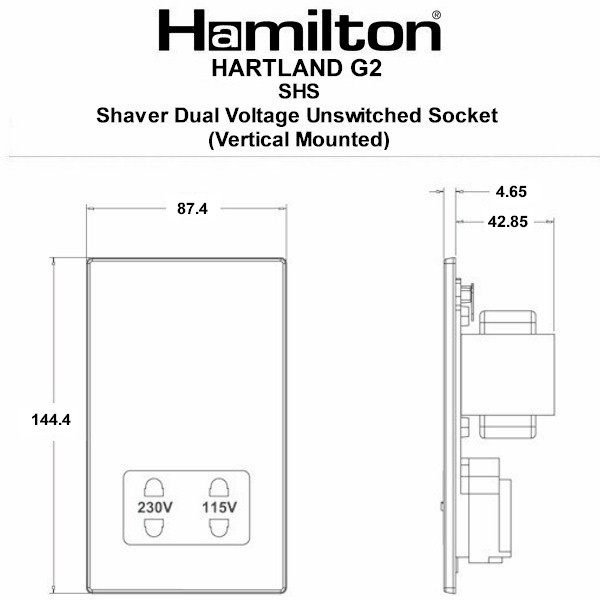

| Dimensions(Nominal) | Double: Height = 144.4mm Width = 87.4mm Depth = 4.65mm |
| Switched-Poles | None |
| Current-Rating | 20VA |
| Maximum-Load | 200/250V input; 115/230V 20VA output |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | None |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 9x1mm² |
| Earth-Terminal-Capacity-2 | 6×1.5mm² |
| Earth-Terminal-Capacity-3 | 4×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 61558-2-5 + BS 4573 |
| Additional-Notes | Must be mounted vertically. Shuttered :Yes. Box Depth 47mm |
| Commodity-Code | 85366990 |
| Wiring-Image | WDSHS.jpg |
| Item-Image | 7G2ASHSQG.jpg |
| Dimension-Image | TD-7G2SHS.jpg |
| Luckins-TSI | 433714701 |
| Tech-Sheet-Page-Footer | 7G2ASHSQG – Hartland G2 Anthra Gray Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Quartz Grey |
| product-code | S HTG2 GA |
| family-code | S HART G2 |
| last-inv | 18/02/26 |
| unit-weight | 656.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533419562 |
| Uf-HAMInnerBoxQty | 2 |
| Uf-OuterBoxQty | 20 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 011 |
| HAM-SortOrder | 021 |
| InsertSortOrder | 011 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Uf-HAMPlateFinish | Anthra Gray |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Shaver Socket |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Quartz Grey |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 18/02/26 |
| Fixing-Hole-Centres | Box Fixing = 120.6mm |
| Minimum-Wall-Box-Depth | 47mm |
| Plate-Finish | Anthra Gray |
| Subheader2 | Hartland G2 Range |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bzky/#p=1 |
| Weight | 656 GR |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Hart G2 GA Shaver Dual Volt Skt QG |
| Height | 144.4mm |
| Width | 87.4mm |
| Depth | 4.65mm |
