Hart G2 EB 1g 5A Unswt Skt BL

Hart G2 EB 1g 5A Unswt Skt BL
Hart G2 EB 1g 5A Unswt Skt BL - Image 2
Hart G2 EB 1g 5A Unswt Skt BL - Image 3
Hart G2 EB 1g 5A Unswt Skt BL - Image 4

Type

1 gang 5A Unswitched Socket

Plate Finish

Etrium Bronze

Insert Finish

Black

Description

Hartland G2 Etrium Bronze 1 gang 5A Unswitched Socket Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-021-006
Insert-Type

1 gang 5A Unswitched Socket
Insert-Colour

Black
Uf-ItmLabelTechInsert

US5
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Etrium Bronze 1 gang 5A Unswitched Socket Black
PlateFinish

Hartland G2 Etrium Bronze
EAN13-Barcode

5051164026110

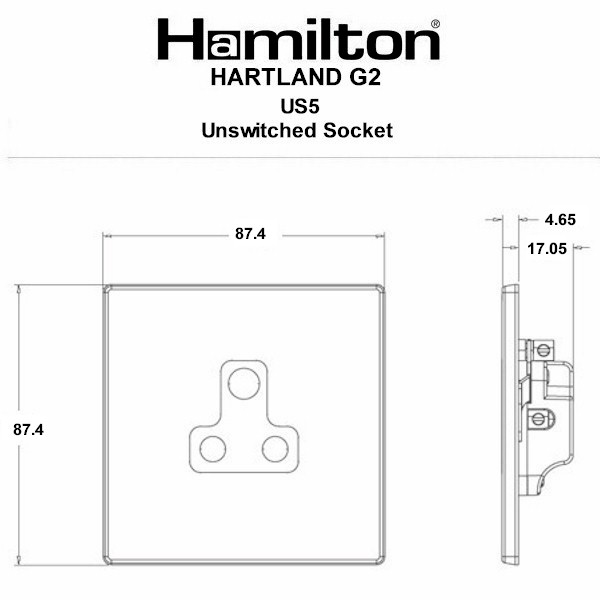

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

None
Current-Rating

5 Amp
Maximum-Load

5 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

2×2.5mm²
Terminal-Capacity-4

1x4mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

2 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 546
Additional-Notes

Shuttered: Yes
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

423823178
Tech-Sheet-Page-Footer

7G2EBUS5B – Hartland G2 Etrium Bronze 1 gang 5A Unswitched Socket Black
product-code

S HTG2 EB
family-code

S HART G2
last-inv

20/02/26
unit-weight

105.00000
weight-units

GR
Uf-LuckinsEDP

4533416701
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

021
InsertSortOrder

006
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

20/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Etrium Bronze
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/nrql/#p=1
Weight

105 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart G2 EB 1g 5A Unswt Skt BL
Height

87.4mm
Width

87.4mm
Depth

4.65mm
