Description
Hartland G2 Antique Brass 1 gang 5A Unswitched Socket Black
SKU: 7G29US5B
Category: Hartland G2 Power Sockets
Type
1 gang 5A Unswitched SocketPlate Finish
Antique BrassInsert Finish
BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland G2 |
| Page-Sort-Order | 011-021-006 |
| Insert-Type | 1 gang 5A Unswitched Socket |
| Insert-Colour | Black |
| Uf-ItmLabelTechInsert | US5 |
| Uf-HAM-Plate-Range | Hartland G2 |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland G2 |
| Patents-And-Trade-Marks | Hartland G2 is a Registered Trade Mark No UK00003388376 |
| Item-Long-Description | Hartland G2 Antique Brass 1 gang 5A Unswitched Socket Black |
| PlateFinish | Hartland G2 Antique Brass |
| EAN13-Barcode | 5051164003463 |

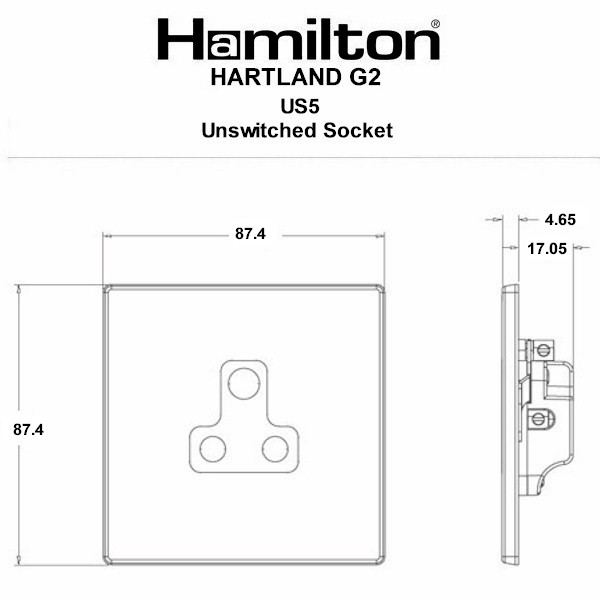

| Dimensions(Nominal) | Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm |
| Switched-Poles | None |
| Current-Rating | 5 Amp |
| Maximum-Load | 5 Amp |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | None |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 2×2.5mm² |
| Terminal-Capacity-4 | 1x4mm² |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4 x 1.5mm2 |
| Earth-Terminal-Capacity-3 | 2 x 2.5mm2 |
| Earth-Terminal-Capacity-4 | 1 x 4mm2 |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS 546 |
| Additional-Notes | Shuttered: Yes |
| Commodity-Code | 85366990 |
| Wiring-Image | WDUS5.jpg |
| Item-Image | 7G29US5B.jpg |
| Dimension-Image | TD-7G2US5.jpg |
| Luckins-TSI | 407517413 |
| Tech-Sheet-Page-Footer | 7G29US5B – Hartland G2 Antique Brass 1 gang 5A Unswitched Socket Black |
| product-code | S HTG2 AB |
| family-code | S HART G2 |
| last-inv | 27/02/26 |
| unit-weight | 102.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533398094 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 011 |
| HAM-SortOrder | 021 |
| InsertSortOrder | 006 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Uf-HAMPlateFinish | Antique Brass |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Unswitched Socket |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Black |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 27/02/26 |
| Fixing-Hole-Centres | Box Fixing = 60.3mm |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Antique Brass |
| Subheader2 | Hartland G2 Range |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/nrql/#p=1 |
| Weight | 102 GR |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Hart G2 AB 1g 5A Unswt Skt BL |
| Height | 87.4mm |
| Width | 87.4mm |
| Depth | 4.65mm |
