Hart G2 BK 2 Euro Apert 50X50+Grid

SKU: 7G28EURO2 Category:
Hart G2 BK 2 Euro Apert 50X50+Grid
Hart G2 BK 2 Euro Apert 50X50+Grid - Image 2
Hart G2 BK 2 Euro Apert 50X50+Grid - Image 3
SKU: 7G28EURO2 Category:

Type

2 gang EuroFix 50x50mm Apertured Plate with Grid

Plate Finish

Black Nickel

Insert Finish

N/A

Description

Hartland G2 EuroFix Black Nickel Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-132-002
Insert-Type

2 gang EuroFix 50x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO2
Uf-HAM-Plate-Range

Hartland G2 EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 EuroFix Black Nickel Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid
PlateFinish

Hartland G2 EuroFix Black Nickel
EAN13-Barcode

5051164005504

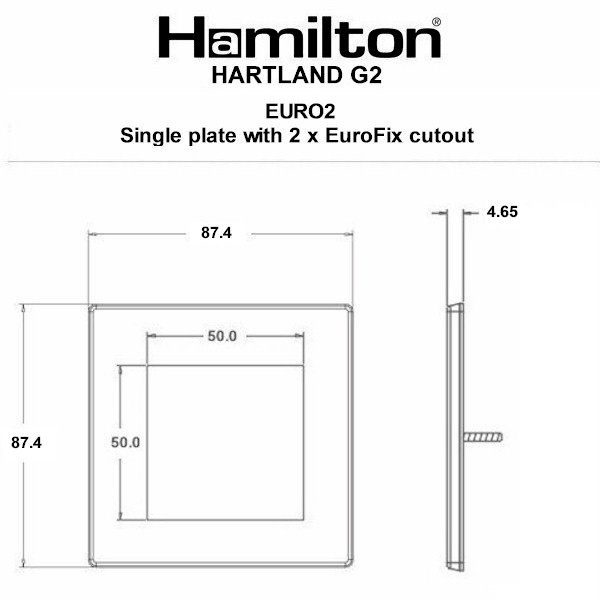

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

73269098
Item-Image

Dimension-Image

Luckins-TSI

407516825
Tech-Sheet-Page-Footer

7G28EURO2 – Hartland G2 EuroFix Black Nickel Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid
product-code

S EF 7G28
family-code

S HART G2
last-inv

11/12/2025
unit-weight

60.00000
weight-units

GR
Uf-LuckinsEDP

4533397503
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

132
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

2
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

04/03/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

As Per Inserts
Weight

60 GR
Voltage

Insert Specific
IP-Rating

IPXXB
Height

87.4mm
Width

87.4mm
Depth

4.65mm
Plate-Finish

Black Nickel
Subheader2

Hartland G2 Plates
