Hart G2 EB 1g 45A Dbl Pole+N Red Rkr/BL

Hart G2 EB 1g 45A Dbl Pole+N Red Rkr/BL
Hart G2 EB 1g 45A Dbl Pole+N Red Rkr/BL - Image 2
Hart G2 EB 1g 45A Dbl Pole+N Red Rkr/BL - Image 3

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Etrium Bronze

Insert Finish

Red/Black

Description

Hartland G2 Etrium Bronze 1 gang 45A Double Pole Rocker and Neon Red/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-027-012
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Insert-Colour

Red/Black
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Etrium Bronze 1 gang 45A Double Pole Rocker and Neon Red/Black
PlateFinish

Hartland G2 Etrium Bronze
EAN13-Barcode

5051164025663
Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

Double
Current-Rating

45 Amp
Maximum-Load

45 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080

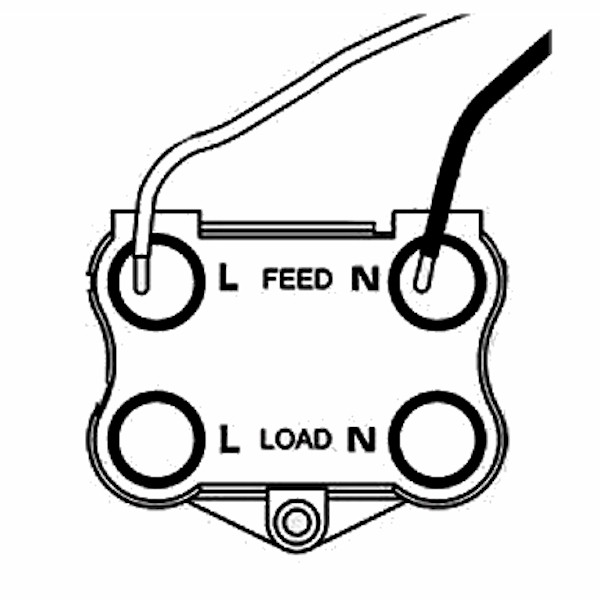

Wiring-Image

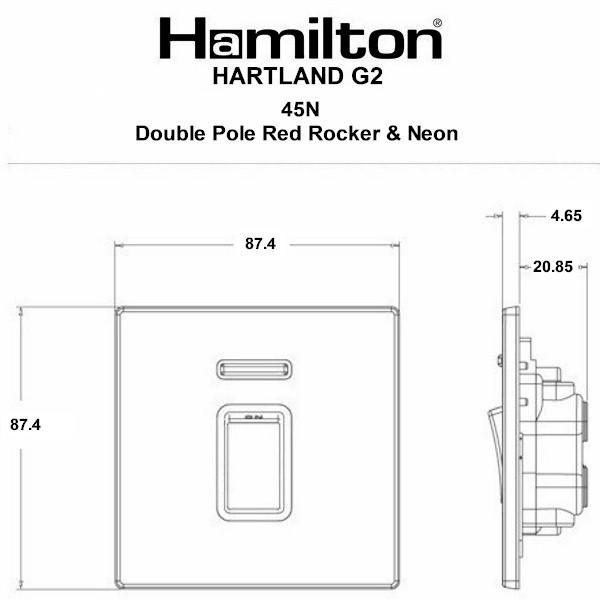

Dimension-Image

Luckins-TSI

423822467
Tech-Sheet-Page-Footer

7G2EB45NB – Hartland G2 Etrium Bronze 1 gang 45A Double Pole Rocker and Neon Red/Black
product-code

S HTG2 EB
family-code

S HART G2
last-inv

18/02/26
unit-weight

173.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533415993
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

027
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

Black
Last-Updated-At-Hamilton

18/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Etrium Bronze
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Weight

173 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart G2 EB 1g 45A Dbl Pole+N Red Rkr/BL
Height

87.4mm
Width

87.4mm
Depth

4.65mm
