Hart G2 MB 1g 20AX DP Rkr+Neon+CO BL/BL

Hart G2 MB 1g 20AX DP Rkr+Neon+CO BL/BL
Hart G2 MB 1g 20AX DP Rkr+Neon+CO BL/BL - Image 2
Hart G2 MB 1g 20AX DP Rkr+Neon+CO BL/BL - Image 3
Hart G2 MB 1g 20AX DP Rkr+Neon+CO BL/BL - Image 4

Type

1 gang 20AX Double Pole Rocker + Neon + Cable Outlet

Plate Finish

Matt Black

Insert Finish

Black/Black

Description

Hartland G2 Matt Black 1 gang 20AX Double Pole Rocker and Neon and Cable Outlet Black/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-027-003
Insert-Type

1 gang 20AX Double Pole Rocker + Neon + Cable Outlet
Insert-Colour

Black/Black
Uf-ItmLabelTechInsert

DPNC
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Matt Black 1 gang 20AX Double Pole Rocker and Neon and Cable Outlet Black/Black
PlateFinish

Hartland G2 Matt Black
EAN13-Barcode

5051164004323

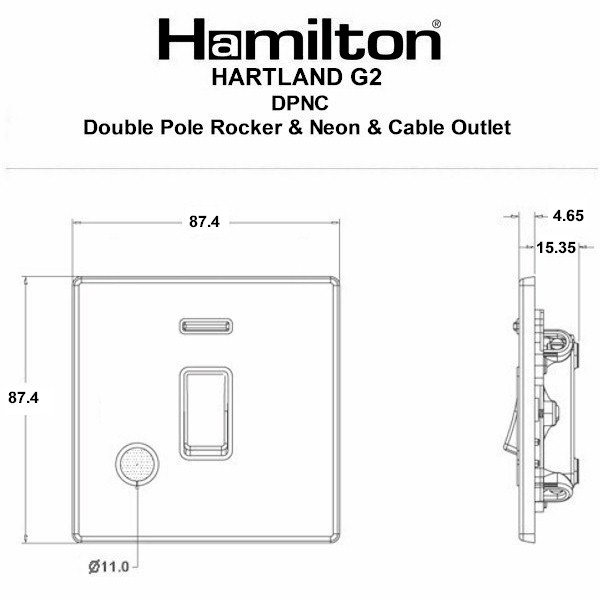

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

Double
Current-Rating

20AX
Maximum-Load

20 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Cable-Outlet-Minimum-Maximum

Min = 0.75mm² Max = 2.5mm²
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Luckins-TSI

407519644
Tech-Sheet-Page-Footer

7G2MBDPNCBL-B – Hartland G2 Matt Black 1 gang 20AX Double Pole Rocker and Neon and Cable Outlet Black/Black
product-code

S HTG2 MB
family-code

S HART G2
last-inv

07/01/26
unit-weight

140.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533400322
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

027
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Cable-Outlet-Min

0.75mm²
Cable-Outlet-Max

2.5mm²
Uf-HAMPlateFinish

Matt Black
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon + Cable Outlet
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

Black
Last-Updated-At-Hamilton

26/02/26
Item-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Matt Black
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Weight

140 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart G2 MB 1g 20AX DP Rkr+Neon+CO BL/BL
Height

87.4mm
Width

87.4mm
Depth

4.65mm
