Hart G2 BC 1g 45A Dbl Pole+N Red Rkr/BL

SKU: 7G2745NB Category:
Hart G2 BC 1g 45A Dbl Pole+N Red Rkr/BL
Hart G2 BC 1g 45A Dbl Pole+N Red Rkr/BL - Image 2
Hart G2 BC 1g 45A Dbl Pole+N Red Rkr/BL - Image 3
Hart G2 BC 1g 45A Dbl Pole+N Red Rkr/BL - Image 4
SKU: 7G2745NB Category:

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Bright Chrome

Insert Finish

Red/Black

Description

Hartland G2 Bright Chrome 1 gang 45A Double Pole Rocker and Neon Red/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-027-012
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Insert-Colour

Red/Black
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Bright Chrome 1 gang 45A Double Pole Rocker and Neon Red/Black
PlateFinish

Hartland G2 Bright Chrome
EAN13-Barcode

5051164000684
Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

Double
Current-Rating

45 Amp
Maximum-Load

45 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080

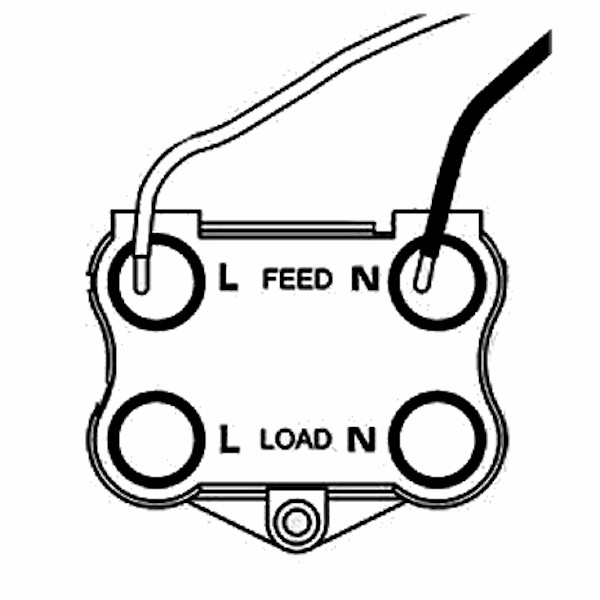

Wiring-Image

Item-Image

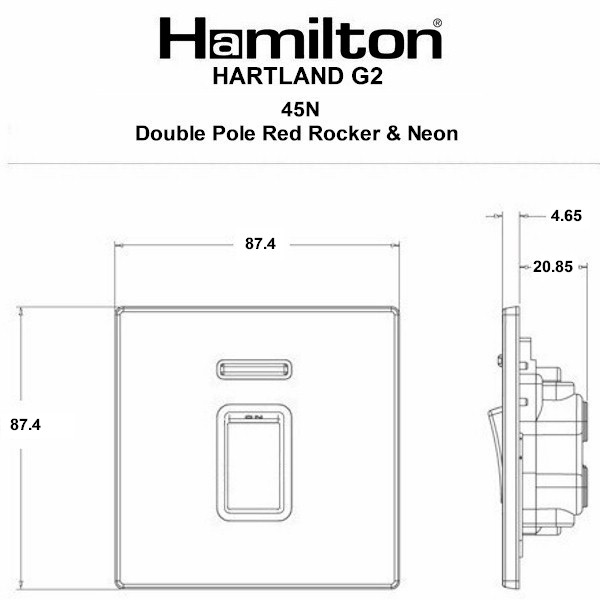

Dimension-Image

Luckins-TSI

407520099
Tech-Sheet-Page-Footer

7G2745NB – Hartland G2 Bright Chrome 1 gang 45A Double Pole Rocker and Neon Red/Black
product-code

S HTG2 BC
family-code

S HART G2
last-inv

29/01/2026
unit-weight

171.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533400775
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

27
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

Black
Last-Updated-At-Hamilton

29/01/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Bright Chrome
Subheader2

Hartland G2 Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Weight

171 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart G2 BC 1g 45A Dbl Pole+N Red Rkr/BL
Height

87.4mm
Width

87.4mm
Depth

4.65mm
