Super Stockists

Shr G2 MW 1g 20AX Inter Tog MW

Shr G2 MW 1g 20AX Inter Tog MW
Shr G2 MW 1g 20AX Inter Tog MW - Image 2
Shr G2 MW 1g 20AX Inter Tog MW - Image 3

Type

1 gang 20AX Intermediate FL Dolly

Plate Finish

Matt White

Insert Finish

Matt White

Description

Hartland G2 Matt White 1 gang 20AX Intermediate Toggle Matt White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-016-001
Subheader2

Hartland G2 Dollies
Insert-Type

1 gang 20AX Intermediate FL Dolly
Plate-Finish

Matt White
Insert-Colour

Matt White
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
Uf-ItmLabelTechInsert

T31-FLDLY
Uf-HAM-Plate-Range

Sheer G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Matt White 1 gang 20AX Intermediate Toggle Matt White
PlateFinish

Sheer G2 Matt White
EAN13-Barcode

5017503009923

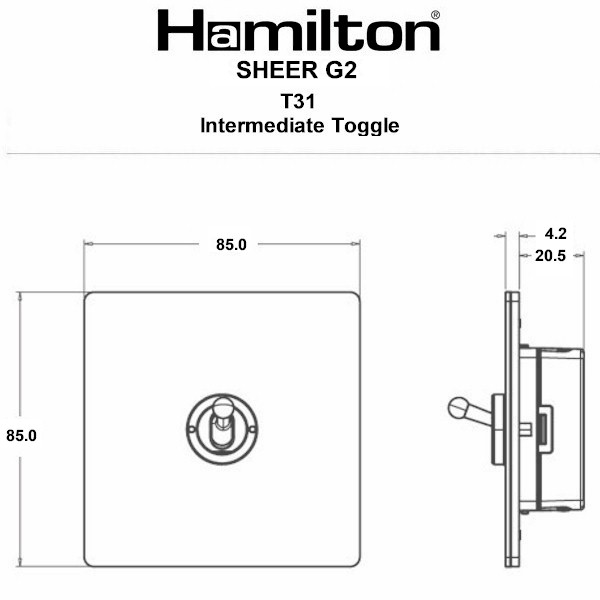

Dimensions(Nominal)

Single: Height = 85mm Width = 85mm Depth = 1.5mm + 2.7mm Gasket
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Current-Rating

20AX
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Luckins-TSI

438794386
Tech-Sheet-Page-Footer

8G2MWT31 – Hartland G2 Matt White 1 gang 20AX Intermediate Toggle Matt White
description

Sheer G2 MW 1g 20AX Inter Tog MW
product-code

S HTG2 MW
family-code

S HART G2
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533468306
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

16
InsertSortOrder

001
Generic-Size

Single
Height

85mm
Width

85mm
Depth

1.5mm + 2.7mm Gasket
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
Uf-HAMPlateFinish

Matt White
Uf-HAMFrameFinish

n/a
WEB-InsertType

Intermediate
WEB-NumberofGangs

1
MainInsertColour

Matt White
TrimColour

n/a
Last-Updated-At-Hamilton

03/02/2026
