Description
Hartland G2 Matt White 1 gang 20AX 2 Way Toggle Matt White
Shr G2 MW 1g 20AX 2Way Toggle MW
Type
1 gang 20AX 2 Way FL DollyPlate Finish
Matt WhiteInsert Finish
Matt WhiteAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland G2 |
| Page-Sort-Order | 011-016-001 |
| Subheader2 | Hartland G2 Dollies |
| Insert-Type | 1 gang 20AX 2 Way FL Dolly |
| Plate-Finish | Matt White |
| Insert-Colour | Matt White |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/uzsv/#p=1 |
| Uf-ItmLabelTechInsert | T21-FLDLY |
| Uf-HAM-Plate-Range | Sheer G2 |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland G2 |
| Patents-And-Trade-Marks | Hartland G2 is a Registered Trade Mark No UK00003388376 |
| Item-Long-Description | Hartland G2 Matt White 1 gang 20AX 2 Way Toggle Matt White |
| PlateFinish | Sheer G2 Matt White |
| EAN13-Barcode | 5017503009886 |

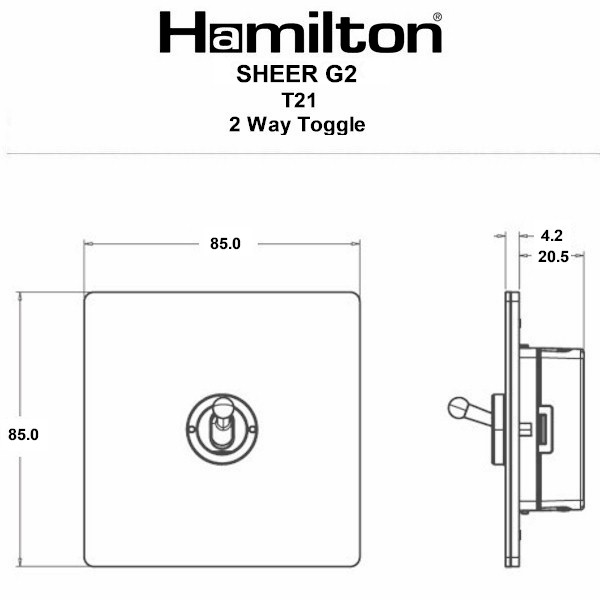

| Dimensions(Nominal) | Single: Height = 85mm Width = 85mm Depth = 1.5mm + 2.7mm Gasket |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Switched-Poles | Single |
| Current-Rating | 20AX |
| Voltage | 220/250V AC |
| Maximum-Load | 20 Amp inductive |
| Mains-Frequency | 50/60Hz |
| IP-Rating | IP2XD |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 6x1mm² |
| Terminal-Capacity-2 | 5×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Terminal-Capacity-4 | 2x4mm² |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 6x1mm² |
| Earth-Terminal-Capacity-2 | 5×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-1 |
| Module-Size | Height = 53mm Width = 25mm Depth = 23mm |
| Commodity-Code | 85365080 |
| Wiring-Image | WD2Wv2.jpg |
| Dimension-Image | TD-8G2T21.jpg |
| Luckins-TSI | 438794344 |
| Tech-Sheet-Page-Footer | 8G2MWT21 – Hartland G2 Matt White 1 gang 20AX 2 Way Toggle Matt White |
| description | Sheer G2 MW 1g 20AX 2Way Toggle MW |
| product-code | S HTG2 MW |
| family-code | S HART G2 |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533468267 |
| Uf-HAMInnerBoxQty | 5 |
| Uf-OuterBoxQty | 50 |
| Picture-Exists | No |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 11 |
| HAM-SortOrder | 16 |
| InsertSortOrder | 001 |
| Generic-Size | Single |
| Height | 85mm |
| Width | 85mm |
| Depth | 1.5mm + 2.7mm Gasket |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Module-Size-Height | 53mm |
| Module-Size-Width | 25mm |
| Module-Size-Depth | 23mm |
| Uf-HAMPlateFinish | Matt White |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | 2 Way |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Matt White |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 03/02/2026 |
Download datasheet
