Name: Hart G2 BK 3g 20AX 2Way Toggle BK
SKU: 7G28T23
Availability: InStock

Description

Hartland G2 Black Nickel 3 gang 20AX 2 Way Toggle Black Nickel

Additional information

InsertColourTitle	Insert Finish/Surround Colour
Section-Name	Hartland G2
Page-Sort-Order	011-016-003
Insert-Type	3 gang 20AX 2 Way FL Dolly
Insert-Colour	Black Nickel
Uf-ItmLabelTechInsert	T23-FLDLY
Uf-HAM-Plate-Range	Hartland G2
Uf-HAMPlate-Generic-Size	Double
Range-Name	Hartland G2
Patents-And-Trade-Marks	Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description	Hartland G2 Black Nickel 3 gang 20AX 2 Way Toggle Black Nickel
PlateFinish	Hartland G2 Black Nickel
EAN13-Barcode	5051164005726

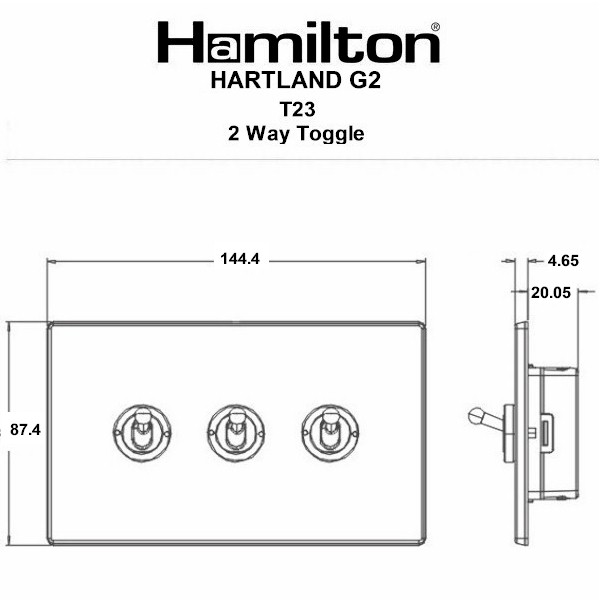

Dimensions(Nominal)	Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Current-Rating	20AX
Commodity-Code	85365080

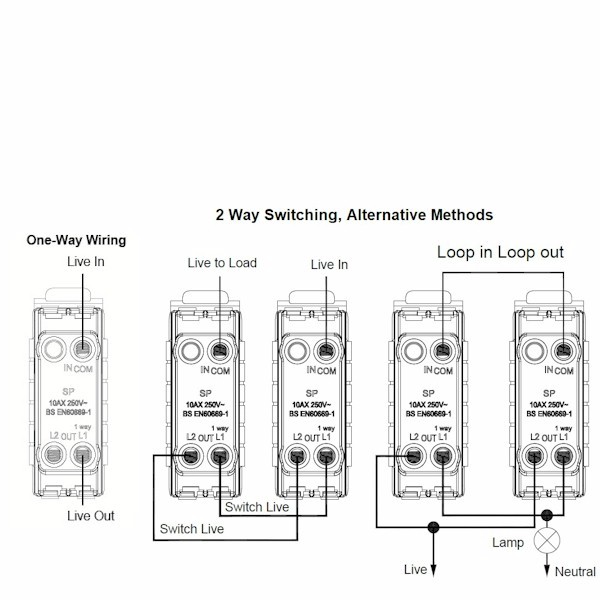

Wiring-Image	WD2Wv2.jpg
Item-Image	7G28T23.jpg
Dimension-Image	TD-7G2T23.jpg
Luckins-TSI	407519550
Tech-Sheet-Page-Footer	7G28T23 – Hartland G2 Black Nickel 3 gang 20AX 2 Way Toggle Black Nickel
product-code	S HTG2 BK
family-code	S HART G2
unit-weight	0.00000
weight-units	GR
Uf-ItmLabelCE	CEPCC.jpg
Uf-LuckinsEDP	4533400238
Uf-HAMInnerBoxQty	3
Uf-OuterBoxQty	30
Picture-Exists	Yes
Uf-ITMTechDataType	Plate
Uf-IncludeinPriceList	Yes
FamilySortOrder	11
HAM-SortOrder	16
InsertSortOrder	003
Generic-Size	Double
Box-Fixing-Hole-Centres	120.6mm
Uf-HAMPlateFinish	Black Nickel
Uf-HAMFrameFinish	n/a
WEB-InsertType	2 Way
WEB-NumberofGangs	3
MainInsertColour	Black Nickel
TrimColour	n/a
Last-Updated-At-Hamilton	16/02/2026
last-inv	08/07/2025
Module-Size-Height	53mm
Module-Size-Depth	23mm
Fixing-Hole-Centres	Box Fixing = 120.6mm
Minimum-Wall-Box-Depth	35mm
Plate-Finish	Black Nickel
Subheader2	Hartland G2 Dollies
QR-Instruction	https://online.fliphtml5.com/Hamilton/uzsv/#p=1
description	Hart G2 BK 3g 20AX 2Way Toggle BK
Height	87.4mm
Width	144.4mm
Depth	4.65mm
