Hart G2 PB 2g LEDITB100 2 way Dimmer PB

Hart G2 PB 2g LEDITB100 2 way Dimmer PB
Hart G2 PB 2g LEDITB100 2 way Dimmer PB - Image 2
Hart G2 PB 2g LEDITB100 2 way Dimmer PB - Image 3

Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Polished Brass

Insert Finish

Polished Brass

Description

Hartland G2 Polished Brass 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Polished Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-012-002
Insert-Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Polished Brass
Uf-ItmLabelTechInsert

2XLEDITB
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Polished Brass 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Polished Brass
PlateFinish

Hartland G2 Polished Brass
EAN13-Barcode

5051164024413

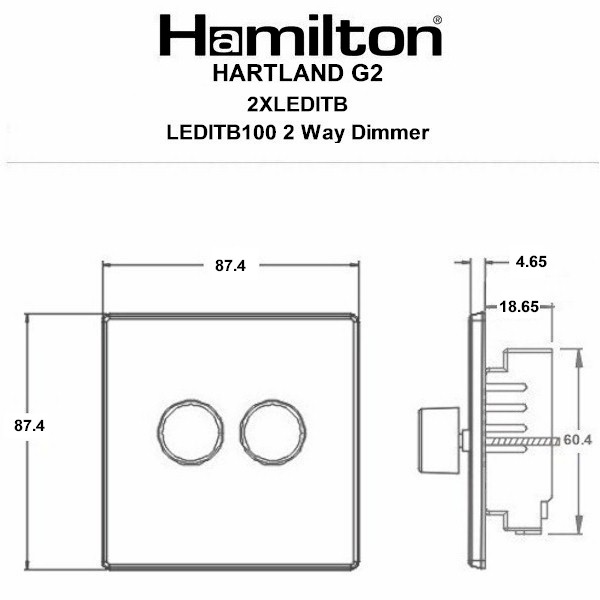

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

423823301
Tech-Sheet-Page-Footer

7G212XLEDITB100 – Hartland G2 Polished Brass 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Polished Brass
product-code

S HTG2 PB
family-code

S HART G2
last-inv

23/01/26
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533416837
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

012
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

2
MainInsertColour

Polished Brass
TrimColour

n/a
Last-Updated-At-Hamilton

07/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

Hart G2 PB 2g LEDITB100 2 way Dimmer PB
Height

87.4mm
Width

87.4mm
Depth

4.65mm
Plate-Finish

Polished Brass
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
