Hart G2 GA 3g LEDITB100 2 way Dim GA

Hart G2 GA 3g LEDITB100 2 way Dim GA
Hart G2 GA 3g LEDITB100 2 way Dim GA - Image 2
Hart G2 GA 3g LEDITB100 2 way Dim GA - Image 3

Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Anthra Gray

Insert Finish

Anthra Gray

Description

Hartland G2 Anthra Gray 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Anthra Gray

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-012-003
Insert-Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Anthra Gray
Uf-ItmLabelTechInsert

3XLEDITB
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Anthra Gray 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Anthra Gray
PlateFinish

Hartland G2 Anthra Gray
EAN13-Barcode

5051164028589

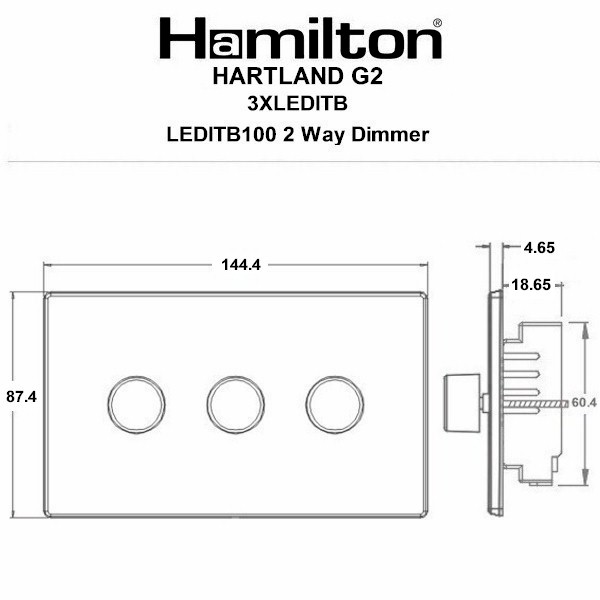

Dimensions(Nominal)

Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

433715302
Tech-Sheet-Page-Footer

7G2A3XLEDITB100 – Hartland G2 Anthra Gray 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Anthra Gray
product-code

S HTG2 GA
family-code

S HART G2
last-inv

16/02/26
unit-weight

324.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533420166
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

012
InsertSortOrder

003
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Uf-HAMPlateFinish

Anthra Gray
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

3
MainInsertColour

Anthra Gray
TrimColour

n/a
Last-Updated-At-Hamilton

16/02/26
Fixing-Hole-Centres

Box Fixing = 120.6mm
Minimum-Wall-Box-Depth

35mm
Weight

324 GR
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

Hart G2 GA 3g LEDITB100 2 way Dim GA
Height

87.4mm
Width

144.4mm
Depth

4.65mm
Plate-Finish

Anthra Gray
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
