Hart G2 BC 1g LEDITB100 2 way Dimmer BC

SKU: 7G271XLEDITB100 Category:
Hart G2 BC 1g LEDITB100 2 way Dimmer BC
Hart G2 BC 1g LEDITB100 2 way Dimmer BC - Image 2
Hart G2 BC 1g LEDITB100 2 way Dimmer BC - Image 3
SKU: 7G271XLEDITB100 Category:

Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Bright Chrome

Insert Finish

Bright Chrome

Description

Hartland G2 Bright Chrome 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-012-001
Insert-Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Bright Chrome
Uf-ItmLabelTechInsert

1XLEDITB
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Bright Chrome 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome
PlateFinish

Hartland G2 Bright Chrome
EAN13-Barcode

5051164000585

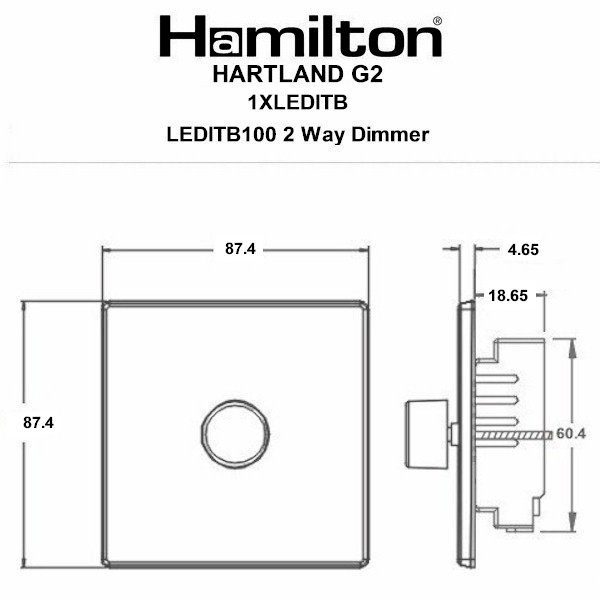

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

Single
Current-Rating

0.4A
Maximum-Load

5-100W (10 LED Lamps MAX)
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Item-Image

Dimension-Image

Luckins-TSI

407521030
Tech-Sheet-Page-Footer

7G271XLEDITB100 – Hartland G2 Bright Chrome 1 gang 100W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome
product-code

S HTG2 BC
family-code

S HART G2
last-inv

24/02/26
unit-weight

164.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533401716
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

012
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

1
MainInsertColour

Bright Chrome
TrimColour

n/a
Last-Updated-At-Hamilton

24/02/26
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Weight

164 GR
Wattage

5-100W (10 LED Lamps MAX)
Voltage

230V AC
IP-Rating

IP2XD
description

Hart G2 BC 1g LEDITB100 2 way Dimmer BC
Height

87.4mm
Width

87.4mm
Depth

4.65mm
Plate-Finish

Bright Chrome
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
