Hart G2 SB 1g 13A DP Fused Spur SB/BL

Hart G2 SB 1g 13A DP Fused Spur SB/BL
Hart G2 SB 1g 13A DP Fused Spur SB/BL - Image 2
Hart G2 SB 1g 13A DP Fused Spur SB/BL - Image 3

Type

1 gang 13A Double Pole Fused Spur

Plate Finish

Satin Brass

Insert Finish

Satin Brass/Black

Description

Hartland G2 Satin Brass 1 gang 13A Double Pole Fused Spur Satin Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-026-001
Insert-Type

1 gang 13A Double Pole Fused Spur
Insert-Colour

Satin Brass/Black
Uf-ItmLabelTechInsert

SP
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Satin Brass 1 gang 13A Double Pole Fused Spur Satin Brass/Black
PlateFinish

Hartland G2 Satin Brass
EAN13-Barcode

5051164026660

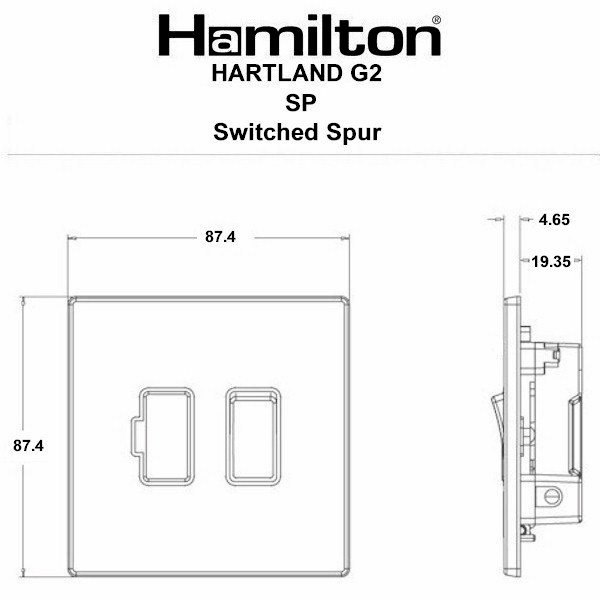

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-4
Commodity-Code

85363010
Wiring-Image

Dimension-Image

Luckins-TSI

423822438
Tech-Sheet-Page-Footer

7G22SPSB-B – Hartland G2 Satin Brass 1 gang 13A Double Pole Fused Spur Satin Brass/Black
product-code

S HTG2 SB
family-code

S HART G2
last-inv

26/02/26
unit-weight

163.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533415964
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

026
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole Fused Spur
WEB-NumberofGangs

1
MainInsertColour

Satin Brass
TrimColour

Black
Last-Updated-At-Hamilton

26/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Satin Brass
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/jfee/#p=1
Weight

163 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart G2 SB 1g 13A DP Fused Spur SB/BL
Height

87.4mm
Width

87.4mm
Depth

4.65mm
