Hart G2 AB 13A DP Fused Spur+N AB/BL

SKU: 7G29SPNABB Category:
Hart G2 AB 13A DP Fused Spur+N AB/BL
Hart G2 AB 13A DP Fused Spur+N AB/BL - Image 2
Hart G2 AB 13A DP Fused Spur+N AB/BL - Image 3
SKU: 7G29SPNABB Category:

Type

1 gang 13A Double Pole Fused Spur + Neon

Plate Finish

Antique Brass

Insert Finish

Antique Brass/Black

Description

Hartland G2 Antique Brass 1 gang 13A Double Pole Fused Spur and Neon Antique Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-026-002
Insert-Type

1 gang 13A Double Pole Fused Spur + Neon
Insert-Colour

Antique Brass/Black
Uf-ItmLabelTechInsert

SPN
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Antique Brass 1 gang 13A Double Pole Fused Spur and Neon Antique Brass/Black
PlateFinish

Hartland G2 Antique Brass
EAN13-Barcode

5051164003296

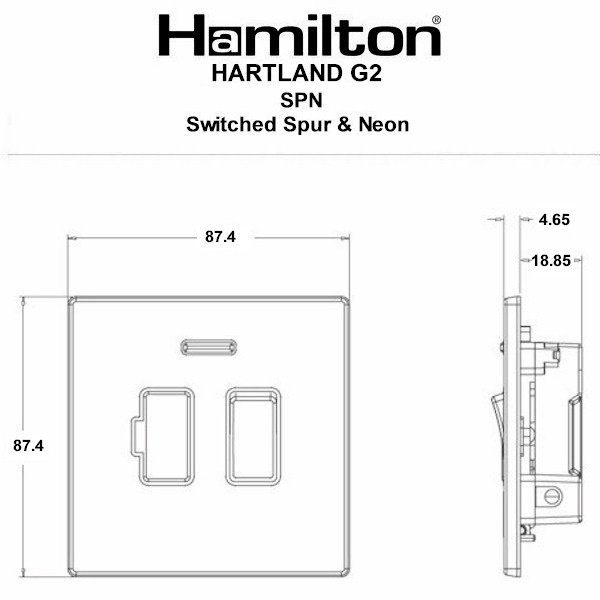

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-4
Commodity-Code

85363010
Wiring-Image

Dimension-Image

Luckins-TSI

407516595
Tech-Sheet-Page-Footer

7G29SPNAB-B – Hartland G2 Antique Brass 1 gang 13A Double Pole Fused Spur and Neon Antique Brass/Black
product-code

S HTG2 AB
family-code

S HART G2
last-inv

26/02/26
unit-weight

136.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533397273
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

026
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole Fused Spur + Neon
WEB-NumberofGangs

1
MainInsertColour

Antique Brass
TrimColour

Black
Last-Updated-At-Hamilton

26/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Antique Brass
Subheader2

Hartland G2 Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/jfee/#p=1
Weight

136 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart G2 AB 13A DP Fused Spur+N AB/BL
Height

87.4mm
Width

87.4mm
Depth

4.65mm
