Hart G2 BK Double Blank Plate

SKU: 7G28BPD Category:
Hart G2 BK Double Blank Plate
Hart G2 BK Double Blank Plate - Image 2
Hart G2 BK Double Blank Plate - Image 3
SKU: 7G28BPD Category:

Type

Double Blank Plate

Plate Finish

Black Nickel

Insert Finish

N/A

Description

Hartland G2 Black Nickel Double Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-036-002
Insert-Type

Double Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPD
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Black Nickel Double Blank Plate
PlateFinish

Hartland G2 Black Nickel
EAN13-Barcode

5051164005429
Dimensions(Nominal)

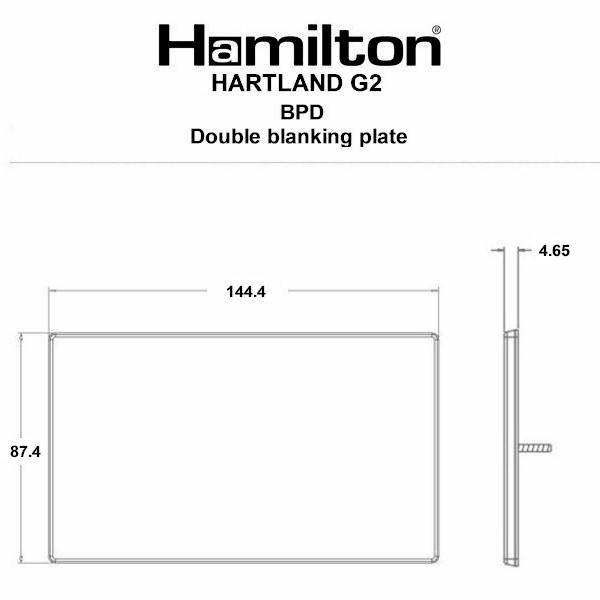

Double: Height = 87.4mm Width = 144.4mm Depth = 4.65mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

73269098
Item-Image

Dimension-Image

Luckins-TSI

407517015
Tech-Sheet-Page-Footer

7G28BPD – Hartland G2 Black Nickel Double Blank Plate
product-code

S HTG2 BK
family-code

S HART G2
unit-weight

200.00000
weight-units

GR
Uf-LuckinsEDP

4533397697
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

11
HAM-SortOrder

36
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Double Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

31/12/2025
Current-Rating

n/a
Wiring-Image

last-inv

16/05/2025
Fixing-Hole-Centres

Box Fixing = 120.6mm
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Black Nickel
Subheader2

Hartland G2 Blank Plates
Weight

200 GR
IP-Rating

IP2XB
description

Hart G2 BK Double Blank Plate
Height

87.4mm
Width

144.4mm
Depth

4.65mm
