Hart G2 EB Single Blank Plate

SKU: 7G2EBBPS Category:
Hart G2 EB Single Blank Plate
Hart G2 EB Single Blank Plate - Image 2
Hart G2 EB Single Blank Plate - Image 3
SKU: 7G2EBBPS Category:

Type

Single Blank Plate

Plate Finish

Etrium Bronze

Insert Finish

N/A

Description

Hartland G2 Etrium Bronze Single Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland G2
Page-Sort-Order

011-036-001
Insert-Type

Single Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPS
Uf-HAM-Plate-Range

Hartland G2
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland G2
Patents-And-Trade-Marks

Hartland G2 is a Registered Trade Mark No UK00003388376
Item-Long-Description

Hartland G2 Etrium Bronze Single Blank Plate
PlateFinish

Hartland G2 Etrium Bronze
EAN13-Barcode

5051164025731

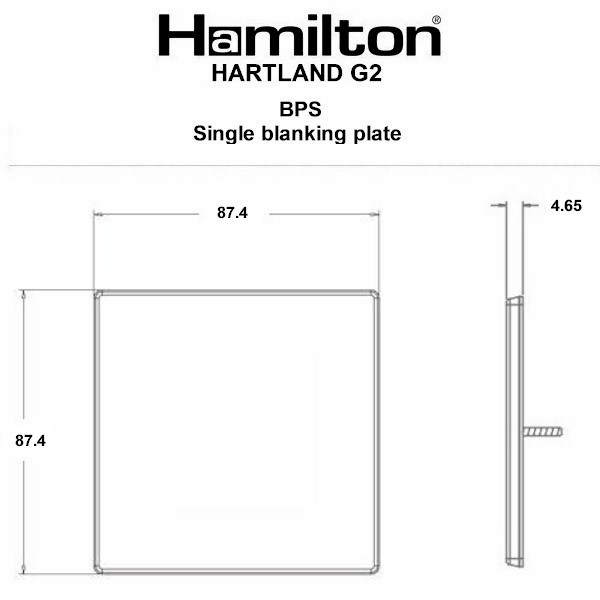

Dimensions(Nominal)

Single: Height = 87.4mm Width = 87.4mm Depth = 4.65mm
Switched-Poles

N/A
Current-Rating

n/a
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

73269098
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

423822247
Tech-Sheet-Page-Footer

7G2EBBPS – Hartland G2 Etrium Bronze Single Blank Plate
product-code

S HTG2 EB
family-code

S HART G2
last-inv

11/02/26
unit-weight

122.00000
weight-units

GR
Uf-LuckinsEDP

4533415773
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

011
HAM-SortOrder

036
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Single Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

11/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Etrium Bronze
Subheader2

Hartland G2 Range
Weight

122 GR
IP-Rating

IP2XB
description

Hart G2 EB Single Blank Plate
Height

87.4mm
Width

87.4mm
Depth

4.65mm
