Hart CFX Pr/Wht DP SS2 + USBULTx2 BL/BL

Hart CFX Pr/Wht DP SS2 + USBULTx2 BL/BL
Hart CFX Pr/Wht DP SS2 + USBULTx2 BL/BL - Image 2

Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2x2.4A (4.8A Total)

Plate Finish

Primed White

Insert Finish

Black/Black

Description

Hartland CFX Primed White 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Black/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-023-001
Insert-Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2×2.4A (4.8A Total)
Insert-Colour

Black/Black
Uf-ItmLabelTechInsert

SS2USBX2ULT
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Primed White 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Black/Black
PlateFinish

Hartland CFX Primed White
EAN13-Barcode

5017504090319

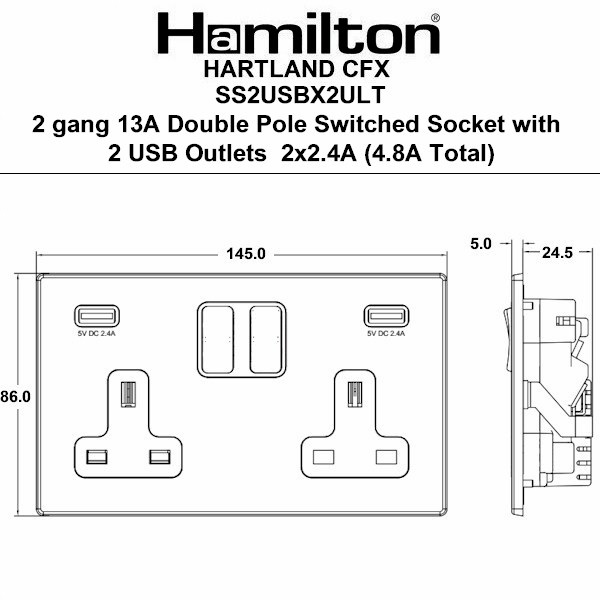

Dimensions(Nominal)

Double: Height = 86.0mm Width = 145.0mm Depth = 5.0mm
Switched-Poles

Double
Current-Rating

13 Amp, USB 2 x 2.4A
Maximum-Load

13 Amp, USB = 2.4A X 2
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Dimension-Image

Luckins-TSI

405689123
Tech-Sheet-Page-Footer

7WPCSS2USBULTBL-B – Hartland CFX Primed White 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Black/Black
product-code

S HT-C PRW
family-code

S HART CFX
last-inv

13/09/23
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533395039
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

012
HAM-SortOrder

023
InsertSortOrder

001
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Primed White
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Black
TrimColour

Black
Last-Updated-At-Hamilton

05/12/25
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Voltage

180/250V AC USB = 5V
IP-Rating

IP2XD
description

Hart CFX Pr/Wht DP SS2 + USBULTx2 BL/BL
Height

86.0mm
Width

145.0mm
Depth

5.0mm
Plate-Finish

Primed White
Subheader2

Hartland CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
