Hart CFX PN SP SS1 + USBx1 BC/WH

Hart CFX PN SP SS1 + USBx1 BC/WH
Hart CFX PN SP SS1 + USBx1 BC/WH - Image 2

Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1x2.1A

Plate Finish

Polished Nickel

Insert Finish

Bright Chrome/White

Description

Hartland CFX Polished Nickel 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Bright Chrome/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-022-001
Insert-Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1×2.1A
Insert-Colour

Bright Chrome/White
Uf-ItmLabelTechInsert

SS1USBX1
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Polished Nickel 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Bright Chrome/White
PlateFinish

Hartland CFX Polished Nickel
EAN13-Barcode

5017504089238

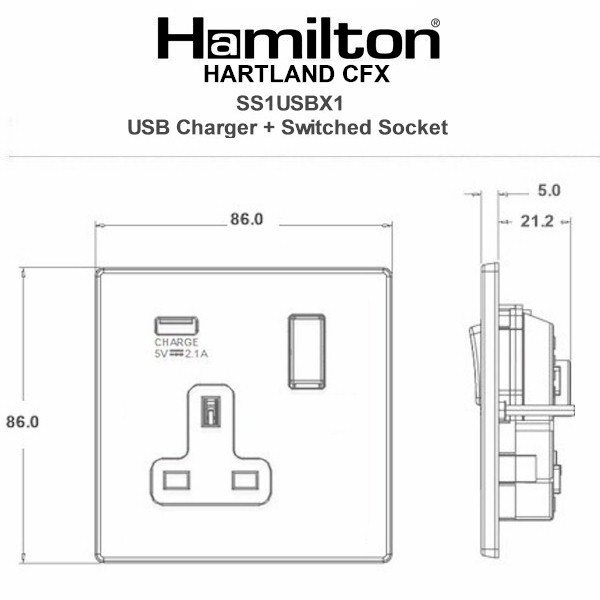

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

Single
Current-Rating

13 Amp, USB 1 x 2.1A
Maximum-Load

13 Amp, USB = 2.1A
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Dimension-Image

Luckins-TSI

404388153
Tech-Sheet-Page-Footer

7PNCSS1USBBC-W – Hartland CFX Polished Nickel 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Bright Chrome/White
product-code

S HT-C PN
family-code

S HART CFX
last-inv

15/02/2019
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533391884
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

22
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Polished Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Single Pole
WEB-NumberofGangs

1
MainInsertColour

Bright Chrome
TrimColour

White
Last-Updated-At-Hamilton

12/05/2025
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Voltage

180/250V AC, USB = 5V
IP-Rating

IP2XD
description

Hart CFX PN SP SS1 + USBx1 BC/WH
Height

86.0mm
Width

86.0mm
Depth

5.0mm
Plate-Finish

Polished Nickel
Subheader2

Hartland CFX USB Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1

Download datasheet
